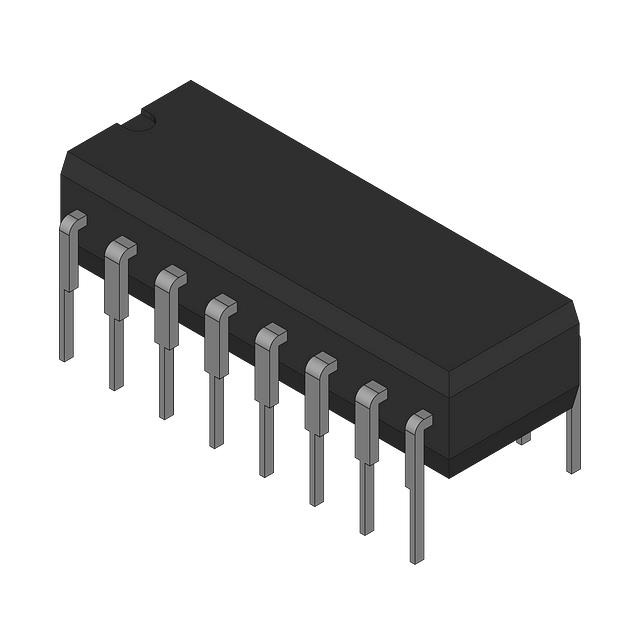

CD4052BNS
Or copy the link below:
- Mfr.Part #
- CD4052BNS
- Manufacturer
- Texas Instruments
- Package / Case
- 16-SOIC (0.209, 5.30mm Width)
- Datasheet
- Download
- Description
- IC MUX/DEMUX DUAL 4X1 16SO
- Stock
- 15,431
- In Stock ：
- 15,431
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Signal Switches, Multiplexers, Decoders
- Analog IC - Other Type :
- DIFFERENTIAL MULTIPLEXER
- Peak Reflow Temperature (Cel) :
- 260
- Supply Current-Max (Isup) :
- 3mA
- Supply Voltage :
- 5V
- Height :
- 2mm
- On-state Resistance Match-Nom :
- 15Ohm
- Off-state Isolation-Nom :
- 40 dB
- Weight :
- 200.686274mg
- Nominal Supply Current :
- 100μA
- Min Supply Voltage :
- 3V
- Length :
- 10.3mm
- JESD-609 Code :
- e4
- Package / Case :
- 16-SOIC (0.209, 5.30mm Width)
- Operating Supply Current :
- 80nA
- Number of Circuits :
- 2
- Factory Lead Time :
- 8 Weeks
- Input Voltage (Min) :
- -0.5V
- Turn-Off Delay Time :
- 450 ns
- Number of Functions :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Number of Bits :
- 4
- Voltage - Supply, Single/Dual (±) :
- 3V~20V ±2.5V~9V
- Mount :
- Surface Mount
- Neg Supply Voltage-Nom (Vsup) :
- -5V
- Channel-to-Channel Matching (ΔRon) :
- 5 Ω
- Switching :
- BREAK-BEFORE-MAKE
- Radiation Hardening :
- No
- Mounting Type :
- Surface Mount
- Operating Supply Voltage :
- 18V
- Lead Free :
- Lead Free
- Multiplexer/Demultiplexer Circuit :
- 4:1
- Channel Capacitance (CS(off), CD(off)) :
- 0.2pF 18pF
- Max Supply Voltage :
- 20V
- Quiescent Current :
- 80nA
- Polarity :
- Non-Inverting
- Normal Position :
- NC
- Packaging :
- Cut Tape (CT)
- RoHS Status :
- ROHS3 Compliant
- Power Supplies :
- 5/15V
- Number of Inputs :
- 8
- Contact Plating :
- Gold
- On-State Resistance (Max) :
- 240Ohm
- Crosstalk :
- -40dB @ 10MHz
- Output :
- SEPARATE OUTPUT
- Number of Pins :
- 16
- Max Dual Supply Voltage :
- 9V
- Logic Function :
- Demultiplexer, Multiplexer
- Propagation Delay :
- 60 ns
- Thickness :
- 1.95mm
- Bandwidth :
- 25MHz
- Width :
- 5.3mm
- Current - Leakage (IS(off)) (Max) :
- 100nA
- Switch Circuit :
- SP4T
- Turn On Delay Time :
- 720 ns
- Number of Terminations :
- 16
- Min Dual Supply Voltage :
- 2.5V
- Terminal Form :
- Gull wing
- ECCN Code :
- EAR99
- Base Part Number :
- CD4052
- Number of Channels :
- 4
- Signal Current-Max :
- 0.01A
- Pin Count :
- 16
- Operating Temperature :
- -55°C~125°C TA
- Resistance :
- 240Ohm
- Supply Type :
- Dual, Single
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Datasheets
- CD4052BNS
Signal Switches, Multiplexers, Decoders Texas Instruments CD4052BNS Overview
The Texas Instruments CD4052BNS is an integrated circuit (IC) designed for signal switching, multiplexing, and decoding applications. This versatile component offers dual 4x1 multiplexing/demultiplexing functionality in a convenient 16-pin small-outline (SO) package. It is engineered to deliver reliable performance and precise signal routing, making it an ideal solution for various electronic systems and industrial applications.
Whether you're designing consumer electronics, industrial automation systems, or telecommunications equipment, the CD4052BNS provides the flexibility and efficiency needed to meet your signal routing requirements. With its compact size, low power consumption, and robust construction, this IC offers exceptional value and performance for demanding applications.
Upgrade your designs with the Texas Instruments CD4052BNS and experience enhanced signal management capabilities for your next project.
CD4052BNS Features
- Dual 4x1 multiplexing/demultiplexing functionality
- 16-pin small-outline (SO) package
- Low power consumption
- Wide operating voltage range
- High-speed switching capability
- Robust construction for reliable performance
CD4052BNS Applications
- Consumer Electronics: The CD4052BNS is commonly used in audio/video equipment, allowing for seamless signal routing in devices such as audio mixers, video switchers, and multimedia systems.
- Industrial Automation: In industrial control systems, the CD4052BNS facilitates signal switching in PLCs (Programmable Logic Controllers), motor control circuits, and sensor interfaces, enabling efficient control and monitoring of manufacturing processes.
- Telecommunications: Within telecommunications infrastructure, this IC plays a crucial role in multiplexing/demultiplexing signals in communication networks, including telephone exchanges, data routers, and broadband modems, ensuring reliable data transmission and reception.
