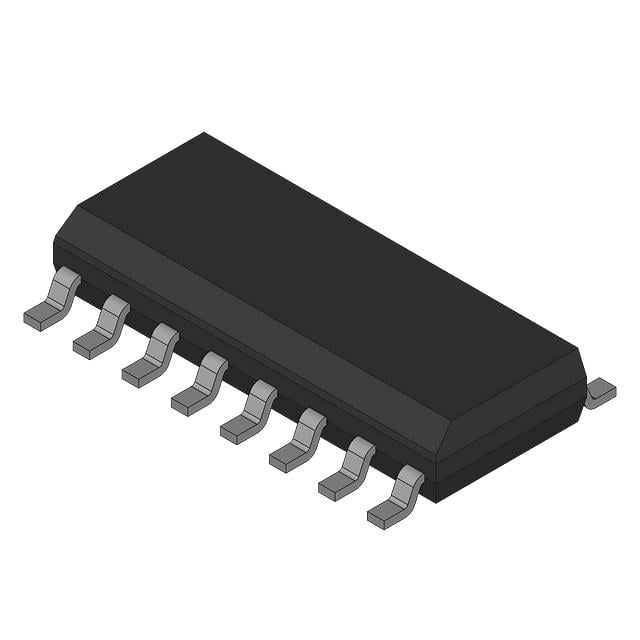

CD4047BNS
Or copy the link below:
- Mfr.Part #
- CD4047BNS
- Manufacturer
- Texas Instruments
- Package / Case
- 14-SOIC (0.209, 5.30mm Width)
- Datasheet
- Download
- Description
- IC MONO/ASTBL MULTIVIBRATR 14SO
- Stock
- 500
- In Stock ：
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- Multivibrators
- Output Polarity :
- Complementary
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold
- Packaging :
- Cut Tape (CT)
- Additional Feature :
- RETRIGGERABLE
- Logic Type :
- Astable, Monostable
- Factory Lead Time :
- 6 Weeks
- Length :
- 10.3mm
- JESD-609 Code :
- e4
- Pbfree Code :
- yes
- Max I(ol) :
- 0.004 A
- Quiescent Current :
- 20μA
- Voltage - Supply :
- 3V~18V
- Number of Functions :
- 1
- Number of Pins :
- 14
- Base Part Number :
- CD4047
- Number of Terminations :
- 14
- Mount :
- Surface Mount
- Number of Data/Clock Inputs :
- 2
- Mounting Type :
- Surface Mount
- Supply Voltage :
- 5V
- Supply Voltage-Min (Vsup) :
- 3V
- Packing Method :
- TR
- Number of Circuits :
- 1
- Terminal Position :
- Dual
- Thickness :
- 1.95mm
- Schmitt Trigger Input :
- No
- Max Power Dissipation :
- 500mW
- Pin Count :
- 14
- Load Capacitance :
- 50pF
- Operating Supply Voltage :
- 12V
- Current - Output High, Low :
- 6.8mA 6.8mA
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Terminal Form :
- Gull wing
- Weight :
- 208.312296mg
- Output Current :
- 6.8mA
- Turn On Delay Time :
- 300 ns
- Series :
- 4000B
- Logic Function :
- Multivibrator
- Package / Case :
- 14-SOIC (0.209, 5.30mm Width)
- Propagation Delay :
- 80ns
- Number of Bits :
- 1
- Power Supply Current-Max (ICC) :
- 0.06mA
- Peak Reflow Temperature (Cel) :
- 260
- Width :
- 5.3mm
- Height :
- 2mm
- Operating Temperature :
- -55°C~125°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- ECCN Code :
- EAR99
- Datasheets
- CD4047BNS
Multivibrators Texas Instruments CD4047BNS Overview
The Texas Instruments CD4047BNS is an advanced IC designed for high-performance monostable and astable applications. As a core component in the Multivibrators category, this integrated circuit offers reliable operation and enhanced versatility. The CD4047BNS is adept at delivering precise timing configurations and pulse generation, making it an indispensable part of modern electronic designs. The strategic integration of this IC in various applications is aimed at improving system reliability and efficiency, which is critical for both prototyping and mass production.
CD4047BNS Features
This monostable/astable multivibrator from Texas Instruments features low power consumption and wide operating voltage range, which ensures adaptability across various power setups and environments. The CD4047BNS is designed for accurate timing generation with the capability to produce stable oscillatory outputs, crucial for timing critical tasks in electronic circuits. Furthermore, its compact 14-SO package allows for streamlined integration into space-constrained applications.
CD4047BNS Applications
- Timers: Used in cooking appliances and industrial timers, the CD4047BNS provides reliable time delay functions and sequential timing.
- Frequency Generators: Integral in synthesizing frequencies for communication equipment, offering precise control over signal generation.
- Pulse Width Modulation (PWM) Controllers: Utilized in motor control and lighting systems to provide adjustable control over power output.
- Oscillator Source for Microprocessors: Serves as a clock pulse generator for CPUs and other digital ICs, ensuring synchronized operation.
- Alarm Systems: Acts as the timing core in security devices, where specific time intervals are crucial for function and response accuracy.
