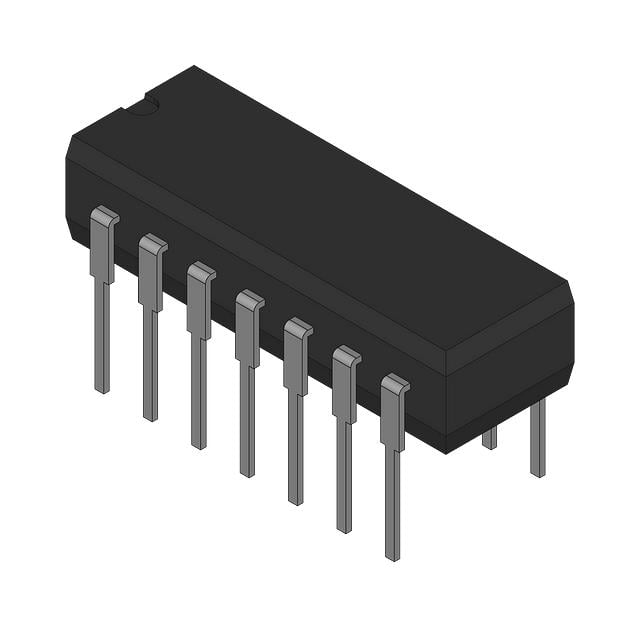

CD4011UBF

Manufacturer :

Texas Instruments

Product Category :

Gates and Inverters

Package / Case :

14-CDIP (0.300, 7.62mm)

Number of Output Enables per Element :

0

Quiescent Current :

5(uA)

Number of Terminals :

14

HTS Code :

8542.39.00.01

Schmitt Trigger :

No

Package Type :

CDIP

Package :

Tube

Operating Supply Voltage (Min) :

3(V)

Brand Name :

Texas

Reach Compliance Code :

not_compliant

Logic Type :

NAND Gate

Output Type :

Push-Pull

Operating Temp Range :

-55C to 125C

Power Supply Current-Max (ICC) :

0.03 mA

Family :

4000/14000/40000

Temperature Grade :

Military

Number of Outputs :

1

Number of Elements :

4

Logical Function :

NAND

Terminal Pitch :

2.54 mm

Voltage - Supply :

3V ~ 18V

Packing Method :

Tube

Current - Quiescent (Max) :

5 µA

Base Product Number :

CD4011

Propagation Delay (tpd) :

120 ns

Factory Lead Time :

1 Week

Number of Selection Inputs per Element :

0

Mounting :

Through Hole

Length :

19.43 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Technology :

CMOS

Terminal Form :

THROUGH-HOLE

Supply Voltage-Min (Vsup) :

3 V

JESD-30 Code :

R-GDIP-T14

Number of Circuits :

4

Package Shape :

RECTANGULAR

Number of Functions :

4

Logic Family :

4000

Manufacturer :

Texas

Operating Supply Voltage (Typ) :

3.3/5/9/12/15(V)

Mounting Type :

Through Hole

Supply Voltage-Max (Vsup) :

18 V

Pin Count :

14

Features :

-

Max I(ol) :

0.0015 A

Terminal Position :

Dual

Supplier Device Package :

14-CDIP

High Level Output Current :

-4.2(mA)

Operating Temperature Classification :

Military

Operating Temperature :

-55°C ~ 125°C

Width :

7.62 mm

Rad Hardened :

No

Seated Height-Max :

5.08 mm

Current - Output High, Low :

6.8mA, 6.8mA

Number of Inputs :

2

Product Status :

Active

Max Propagation Delay @ V, Max CL :

50ns @ 15V, 50pF

Series :

4011B

Operating Supply Voltage (Max) :

18(V)

Logic IC Type :

NAND Gate

Low Level Output Current :

4.2(mA)

Packaging :

Rail/Tube

Subcategory :

Gates

Surface Mount :

No

Power Supplies :

5/15 V
