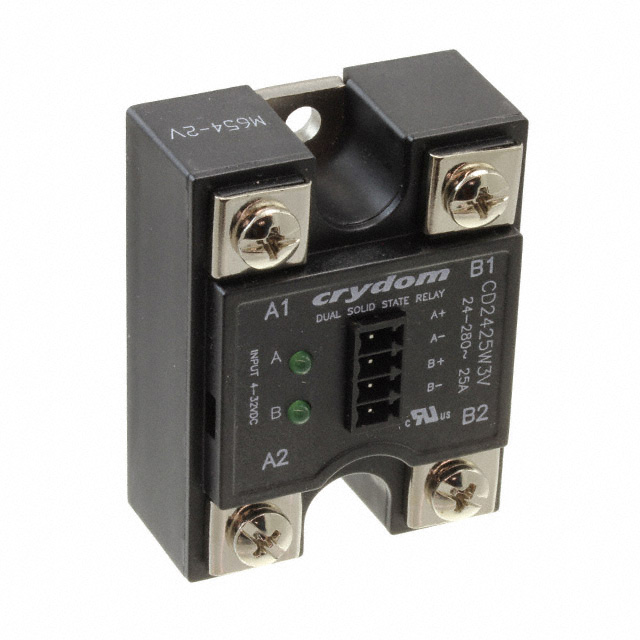

CD2425W3V

Manufacturer :

Sensata Technologies – Crydom

Product Category :

Solid State Relays

Operating Temperature (Max) :

80°C

Circuit Arrangement :

1 FORM A

Manufacturer :

Crydom

Nominal Output Voltage :

12 VAC, 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 277 VAC

Mounting :

Panel

Length :

2.3mm

Output Voltage (Max) :

280(V)

Number of Terminals :

4

Qualification Status :

Not Qualified

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Temperature (Min) :

-40°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Input Voltage (Max) :

32V

Isolation Voltage :

4000(V)

JESD-30 Code :

R-XDMA-X4

Input Voltage (Min) :

4V

Output Type :

AC

Number of Outputs :

1

Reach Compliance Code :

Compliant

Operating Temperature Classification :

COMMERCIAL

Input Voltage :

32(V)

Analog IC - Other Type :

DC-DC REGULATED POWER SUPPLY MODULE

Terminal Position :

Dual

Output Voltage :

24-280 VAC

Terminal Form :

UNSPECIFIED

Termination :

Screw Terminal

Input Polarity :

AC/DC

Input Signal :

4-32 VDC

RoHS Status :

RoHS Compliant

Trim/Adjustable Output :

No

Temperature Grade :

Other

Operating Temp Range :

-40C to 80C

Current Rating :

25 A

Pin Count :

4

Rad Hardened :

No

Input Current :

10(mA)

Surface Mount :

No

ECCN Code :

EAR99

Input Type :

DC

Number of Functions :

1

Total Power Output-Max :

0.5W
