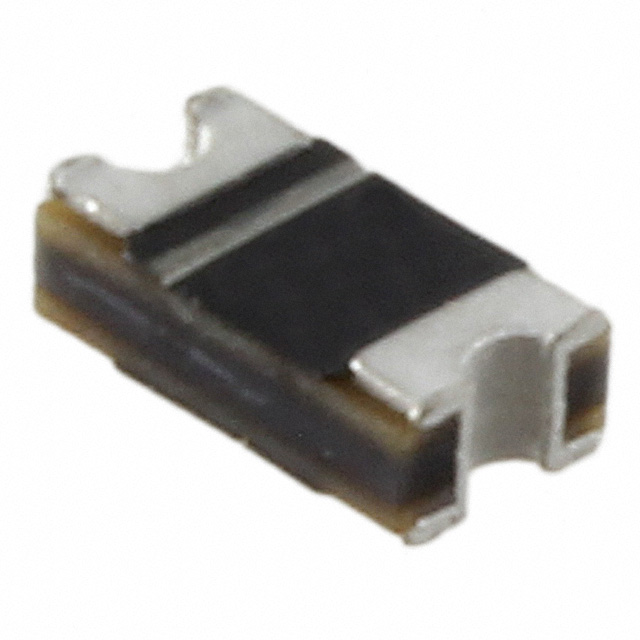

CD1206-B220

Manufacturer :

Bourns, Inc.

Product Category :

Diodes - Rectifiers - Single

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Element Configuration :

Single

ECCN Code :

EAR99

Diode Type :

Schottky

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

JESD-609 Code :

e3

Current - Reverse Leakage @ Vr :

500μA @ 20V

Output Current-Max :

2A

Package / Case :

Chip, Concave Terminals

Max Repetitive Reverse Voltage (Vrrm) :

20V

Terminal Form :

UNSPECIFIED

Additional Feature :

FREE WHEELING DIODE, UL RECOGNIZED

Terminal Position :

Dual

Max Forward Surge Current (Ifsm) :

40A

Width :

1.7mm

Min Operating Temperature :

-55°C

Voltage - Forward (Vf) (Max) @ If :

500mV @ 2A

Qualification Status :

Not Qualified

Base Part Number :

CD1206

Number of Terminations :

2

Pbfree Code :

yes

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Peak Non-Repetitive Surge Current :

40A

Number of Pins :

2

Average Rectified Current :

2A

Application :

GENERAL PURPOSE

Reach Compliance Code :

not_compliant

Number of Elements :

1

Pin Count :

2

Forward Voltage :

500mV

Contact Plating :

Tin

Length :

3.4mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Max Reverse Voltage (DC) :

20V

Forward Current :

2A

Max Operating Temperature :

125°C

Height :

950μm

Peak Reverse Current :

500μA

HTS Code :

8541.10.00.80

Mount :

Surface Mount

Factory Lead Time :

16 Weeks

Number of Phases :

1

Operating Temperature - Junction :

-55°C~125°C

Diode Element Material :

SILICON

Published :

2007

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
