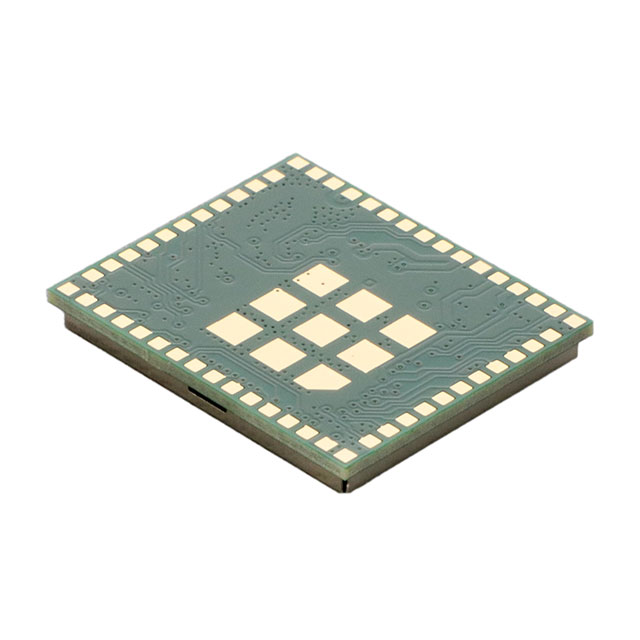

CC3235MODSF12MOBR
Or copy the link below:
- Mfr.Part #
- CC3235MODSF12MOBR
- Manufacturer
- Texas Instruments
- Package / Case
- 63-SMD Module
- Datasheet
- Download
- Description
- RX TXRX MODULE WIFI CHIP SMD
- Stock
- 535
- In Stock ：
- 535
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Texas Instruments
- Product Category :
- RF Transceiver Modules and Modems
- Current - Transmitting :
- 154mA~329mA
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Frequency :
- 2.412GHz~2.472GHz 5.18GHz~5.825GHz
- Modulation :
- CCK, DSSS, OFDM
- RoHS Status :
- ROHS3 Compliant
- Utilized IC / Part :
- CC3235SF
- Base Part Number :
- CC3235
- Voltage - Supply :
- 2.3V~3.6V
- Pbfree Code :
- yes
- Supply Voltage :
- 3.3V
- RF Family/Standard :
- WiFi
- Operating Temperature :
- -40°C~85°C TA
- Surface Mount :
- yes
- Height Seated (Max) :
- 2.4mm
- Width :
- 17.5mm
- Factory Lead Time :
- 6 Weeks
- Current - Receiving :
- 53mA~80mA
- Sensitivity :
- -94.5dBm
- Series :
- SimpleLink™
- Data Rate :
- 54Mbps
- Mounting Type :
- Surface Mount
- Antenna Type :
- Integrated, Chip
- Telecom IC Type :
- TELECOM CIRCUIT
- Number of Functions :
- 1
- Length :
- 20.5mm
- Terminal Position :
- UNSPECIFIED
- Package / Case :
- 63-SMD Module
- Packaging :
- Tape and Reel (TR)
- Terminal Form :
- NO LEAD
- Number of Terminations :
- 63
- Serial Interfaces :
- I2C, I2S, SPI, UART
- Protocol :
- 802.11a/b/g/n
- JESD-30 Code :
- R-XXMA-N63
- Power - Output :
- 16.3dBm
- Memory Size :
- 1MB Flash 256kB RAM
- Datasheets
- CC3235MODSF12MOBR
2.412GHz~2.472GHz 5.18GHz~5.825GHz WiFi -40°C~85°C TA 2.3V~3.6V I2C, I2S, SPI, UART Tape & Reel (TR) Integrated, Chip 54Mbps 16.3dBm 802.11a/b/g/n -94.5dBm 63-SMD Module
CC3235MODSF12MOBR Overview
This RF Transceiver' mounting method is Surface Mount.For optimal performance, this RF Transceiver module uses the Tape & Reel (TR) package.In this RF Transceiver module, there are 63 terminations.As long as its operating temperature is -40°C~85°C TA, Transceiver should perform well.As part of the CC3235 series, the high power Transceivers can be found.The RF Transceiver Module belongs to the SimpleLink™ family.RF Transceiver can supply voltages up to 2.3V~3.6V.At 2.412GHz~2.472GHz 5.18GHz~5.825GHz, the RF Transceiver Module operates.
CC3235MODSF12MOBR Features
Surface Mount
Tape & Reel (TR) package
63 terminations
CC3235
2.3V~3.6V volts
CC3235MODSF12MOBR Applications
There are a lot of Texas Instruments
CC3235MODSF12MOBR RF Transceiver Modules applications.
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
- Smart Meters
