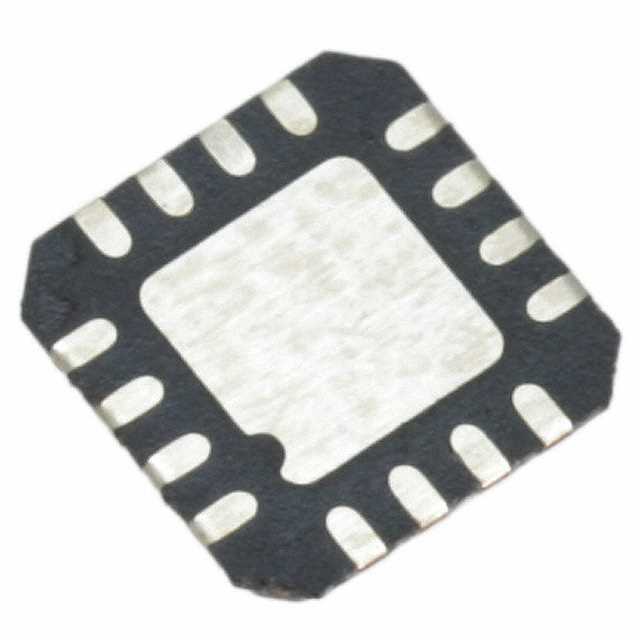

CC2550RSTG3

Manufacturer :

Texas Instruments

Product Category :

RF Transmitters

Depth :

4mm

Data Rate (Max) :

500kBaud

Length :

4mm

Power - Output :

-30dBm~1dBm

Base Part Number :

CC2550

Supply Voltage :

3V

Modulation or Protocol :

2-FSK, ASK, GFSK, MSK, OOK

HTS Code :

8542.39.00.01

Operating Temperature :

-40°C~85°C

Number of Functions :

1

Data Interface :

PCB, Surface Mount

Frequency :

2.4GHz

Number of Pins :

16

Height Seated (Max) :

0.95mm

Power Supplies :

1.8/3.6V

Pin Count :

16

Antenna Connector :

PCB, Surface Mount

Qualification Status :

Not Qualified

JESD-609 Code :

e4

Applications :

ISM, SRD

Supply Current-Max :

0.0228mA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Pitch :

0.65mm

RoHS Status :

ROHS3 Compliant

Current - Transmitting :

21.3mA @ 1 dBm

Package / Case :

16-VQFN Exposed Pad

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Lead Free :

Contains Lead

Peak Reflow Temperature (Cel) :

260

Surface Mount :

yes

Telecom IC Type :

TELECOM CIRCUIT

Terminal Form :

NO LEAD

Number of Terminations :

16

Terminal Position :

QUAD

Pbfree Code :

No

Voltage - Supply :

1.8V~3.6V

Operating Supply Voltage :

3.3V

Packaging :

Tray
