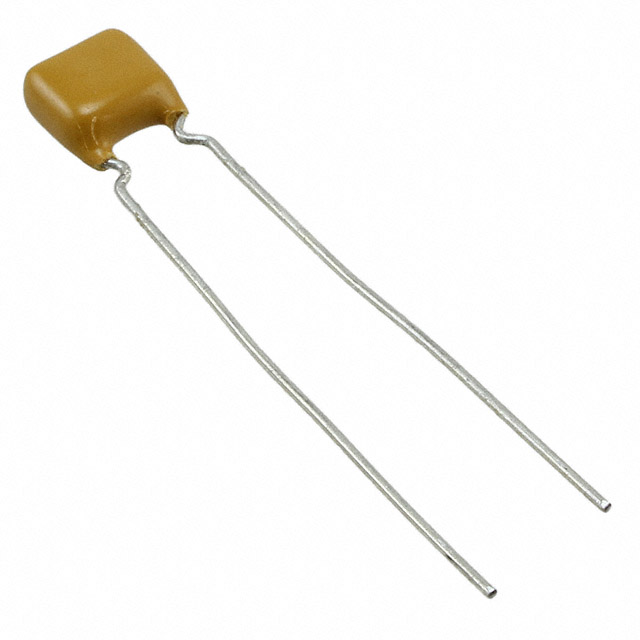

C628C472KHR5TA
Or copy the link below:
- Mfr.Part #
- C628C472KHR5TA
- Manufacturer
- KEMET
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP CER 4700PF 3KV X7R RADIAL
- Stock
- 3,989
- In Stock ：
- 3,989
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Ceramic Capacitors
- Packaging :
- Bulk
- Width :
- 6.35mm
- Package / Case :
- Radial
- Height Seated (Max) :
- 0.520 13.20mm
- JESD-609 Code :
- e3
- Lead Pitch :
- 6.985mm
- ECCN Code :
- EAR99
- Lead Spacing :
- 0.275 6.98mm
- Published :
- 2016
- Size Code :
- 3725
- Height :
- 7.62mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Multilayer :
- yes
- Mounting Type :
- Through Hole
- Size / Dimension :
- 0.370Lx0.250W 9.40mmx6.35mm
- Terminal Finish :
- Matte Tin (Sn) - with Nickel (Ni) barrier
- Capacitance :
- 4700pF
- Terminal Shape :
- Wire
- Voltage - Rated DC :
- 3kV
- Operating Temperature :
- -55°C~125°C
- Applications :
- GENERAL PURPOSE
- Lead Diameter :
- 640 μm
- Number of Terminations :
- 2
- Lead Style :
- Formed Leads - Kinked
- Temperature Characteristics Code :
- X7R
- Series :
- GoldMax 600 Comm X7R HV
- Composition :
- Ceramic
- Lead/Base Style :
- Kinked
- Tolerance :
- ±10%
- Terminal Pitch :
- 6.98mm
- Mount :
- Through Hole
- Pbfree Code :
- yes
- HTS Code :
- 8532.24.00.60
- Temperature Coefficient :
- X7R
- Dissipation Factor :
- 2.5 %
- Rated (DC) Voltage (URdc) :
- 3000V
- RoHS Status :
- ROHS3 Compliant
- Length :
- 9.4mm
- Feature :
- High Voltage
- Datasheets
- C628C472KHR5TA
GoldMax 600 Comm X7R HV 4700pF Ceramic Capacitor ±10% X7R 0.370Lx0.250W 9.40mmx6.35mm -55°C~125°C 2 Terminations High Voltage Through Hole Radial
C628C472KHR5TA Overview
A program's size/dimension is 0.370Lx0.250W 9.40mmx6.35mm for this device.Its coefficient is X7R and determines the change in resistance per degree of temperature for a substance.With the voltage 3kV, it is capable of operating.Lead pitch of a capacitor is simply the distance (spacing) between adjacent threads, and its pitch is 6.985mm.
C628C472KHR5TA Features
a size/dimension of 0.370Lx0.250W 9.40mmx6.35mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 3kV
C628C472KHR5TA Applications
There are a lot of KEMET
C628C472KHR5TA applications of ceramic capacitors.
- General electronic equipment
- Mobile devices
- Servers, PCs, tablets
- Power supply circuit
