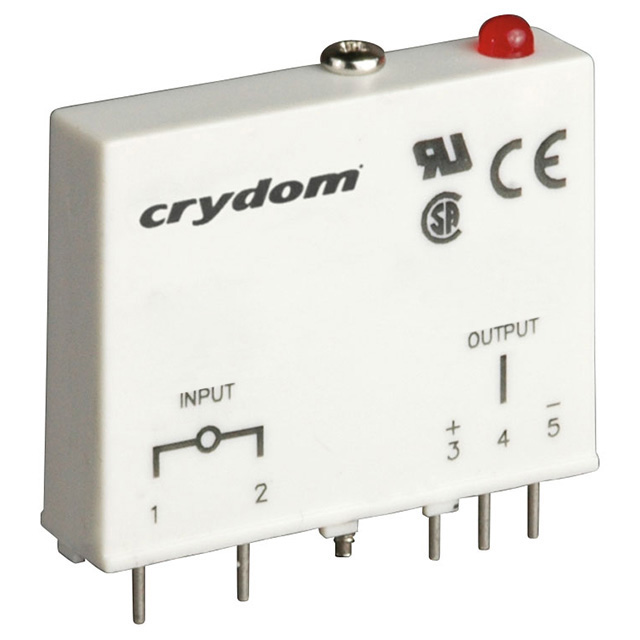

C4IDCK

Manufacturer :

Sensata Technologies – Crydom

Product Category :

I/O Relay Modules

Brand :

Crydom

Terminal Position :

UNSPECIFIED

Qualification Status :

Not Qualified

Analog IC - Other Type :

AC-DC REGULATED POWER SUPPLY MODULE

JESD-30 Code :

R-XXMA-X5

Surface Mount :

No

Product :

DC Input Modules

Output Current :

50 mA

Input Type :

DC

Number of Circuits :

1

Product Type :

I/O Modules

Color :

White

Input Voltage (Max) :

16VDC

Terminal Form :

UNSPECIFIED

I/O Isolation Voltage :

4000VAC

Input Current :

60MA(mA)

Package Shape :

RECTANGULAR

Series :

C4

Terminal Type :

PC Pin

Termination Style :

Plug-In

Technology :

Solid State

Input Voltage (Min) :

2.5VDC

Number of Terminals :

5

Package Type :

Mini With Screw

Product Category :

I/O Modules

Load Voltage (Max) :

30VDC

Agency Approvals :

CE/CSA/UL

Approvals :

CE, CSA, UL

Reach Compliance Code :

Compliant

Product Weight :

31.2(g)

Output Type :

DC

Mounting Style :

Through Hole

Module Type :

Input Module

Load Current (Max) :

50MA(A)

Manufacturer :

Crydom

Operating Temperature Max Deg. C :

80C

Operating Temperature Min Deg. C :

-30C

Input Voltage :

2,516 VDC

Load Voltage (Min) :

4.5VDC

Max Output Current :

50 mA

Subcategory :

I/O Modules

Output Voltage :

30 VDC
