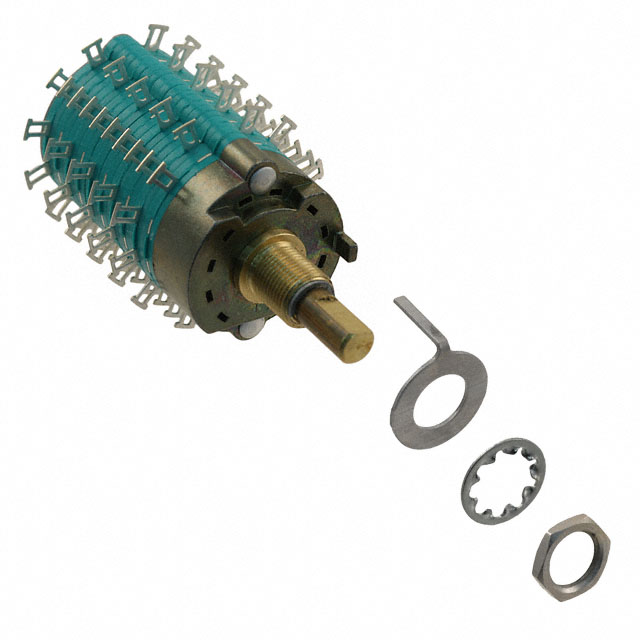

C4D1504N-A
Or copy the link below:
- Mfr.Part #
- C4D1504N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-4POS 300MA 125V
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Contact Material :
- Brass
- Insulation Resistance :
- 10000000000Ohm
- Current Rating :
- 500mA
- Dielectric Withstanding Voltage :
- 1000VAC V
- RoHS Status :
- RoHS Compliant
- Circuit per Deck :
- 3P4T
- Contact Style :
- Non-Shorting
- Number of Positions :
- 2 ~ 4
- Series :
- C4
- Reach Compliance Code :
- Unknown
- Mounting Type :
- Panel Mount
- Actuator Type :
- Flatted (6.35mm Dia)
- Lead Free :
- Lead Free
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Contact Timing :
- Non-Shorting (BBM)
- Number of Decks :
- 5
- Voltage - Rated AC :
- 125V
- Number of Poles per Deck :
- 3
- Voltage - Rated DC :
- 28V
- ECCN Code :
- EAR99
- Index Stops :
- Adjustable
- Switch Type :
- ROTARY SWITCH
- Termination Style :
- Solder Lug
- Termination :
- Solder
- Published :
- 1997
- Number of Pins :
- 4
- Actuator Length :
- 12.70mm
- Index Angle :
- 30 °
- Orientation :
- Vertical
- Depth Behind Panel :
- 48.97mm
- Mount :
- Panel
- Factory Lead Time :
- 6 Weeks
- Contact Finish :
- Silver
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Datasheets
- C4D1504N-A
C4D1504N-A Documents
C4D1504N-A datasheet pdf and Rotary Switches product details from Electroswitch stock available at
