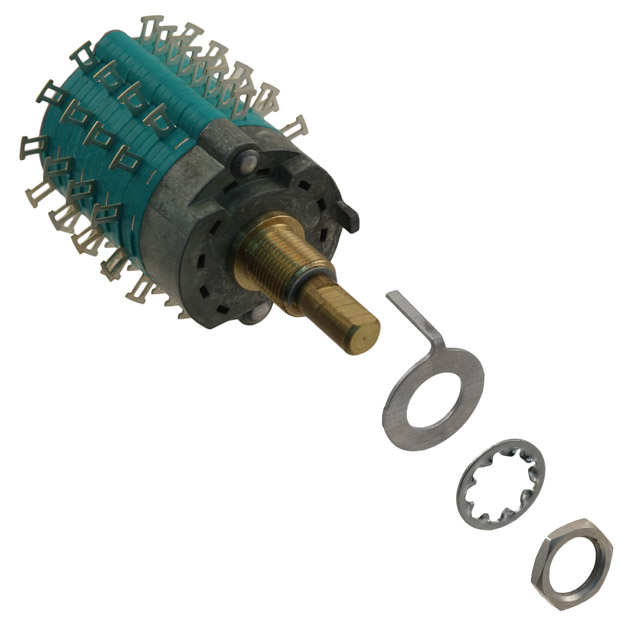

C4D0806N-A
Or copy the link below:
- Mfr.Part #
- C4D0806N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-6POS 300MA 125V
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Published :
- 2006
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Contact Finish :
- Silver
- REACH SVHC :
- Unknown
- Circuit per Deck :
- DP6T
- Contact Current(AC)-Max :
- 0.3A
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Mount :
- Panel
- ECCN Code :
- EAR99
- Depth :
- 41.7576mm
- Contact Current(DC)-Max :
- 0.5A
- Mechanical Life :
- 25000 cycles
- RoHS Status :
- RoHS Compliant
- Series :
- C4
- Contact Function :
- On-On
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Voltage - Rated AC :
- 125V
- Contact Material :
- Brass
- Sealing :
- Epoxy
- Current Rating :
- 500mA
- PCB Hole Count :
- 14
- Depth Behind Panel :
- 41.76mm
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Additional Feature :
- NON-CORROSIVE MATERIALS
- Number of Decks :
- 4
- Contact Style :
- Non-Shorting
- Actuator Length :
- 12.70mm
- Dielectric Withstanding Voltage :
- 1000VAC V
- Illumination Type :
- Illuminated
- Mounting Type :
- Panel Mount
- Number of Positions :
- 2 ~ 6
- Switch Type :
- ROTARY SWITCH
- Orientation :
- Vertical
- Contact Timing :
- Non-Shorting (BBM)
- Termination :
- Lug
- Index Stops :
- Adjustable
- Bushing Length :
- 0.375 inch
- Ratings :
- IP67
- Contact Resistance :
- 0.003mOhm
- Number of Poles :
- 8
- Termination Style :
- Solder Lug
- Voltage - Rated DC :
- 28V
- Insulation Resistance :
- 10GOhm
- Number of Poles per Deck :
- 2
- Actuator Type :
- Flatted (6.35mm Dia)
- Factory Lead Time :
- 6 Weeks
- JESD-609 Code :
- e4
- Index Angle :
- 30 °
- Housing Material :
- Diallyl Phthalate
- Datasheets
- C4D0806N-A
