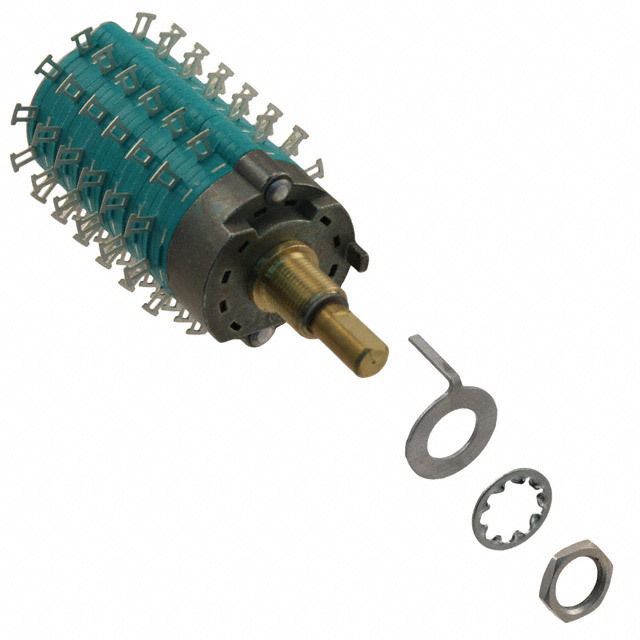

C4D0612N-A
Or copy the link below:
- Mfr.Part #
- C4D0612N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-12POS 300MA 125V
- Stock
- 90
- In Stock ：
- 90
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Orientation :
- Vertical
- Mount :
- Panel
- Contact Finish :
- Silver
- Contact Resistance :
- 0.003mOhm
- Voltage - Rated DC :
- 28V
- Actuator Length :
- 12.70mm
- Lead Free :
- Lead Free
- Index Angle :
- 30 °
- Mounting Type :
- Panel Mount
- Termination Style :
- Solder Lug
- Depth :
- 56.1848mm
- Contact Material :
- Brass
- Depth Behind Panel :
- 56.18mm
- Current Rating :
- 500mA
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Contact Current(DC)-Max :
- 0.5A
- Number of Pins :
- 12
- Number of Poles per Deck :
- 1
- Contact Current(AC)-Max :
- 0.3A
- Number of Decks :
- 6
- Factory Lead Time :
- 6 Weeks
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Published :
- 2006
- Contact Style :
- Non-Shorting
- ECCN Code :
- EAR99
- Series :
- C4
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Bushing Type :
- 3/8-32
- Reach Compliance Code :
- Unknown
- Index Stops :
- Adjustable
- Number of Positions :
- 2 ~ 12
- Switch Type :
- ROTARY SWITCH
- Bushing Length :
- 0.375 inch
- Electrical Life :
- 25000 Cycle(s)
- Pbfree Code :
- yes
- Contact Timing :
- Non-Shorting (BBM)
- Circuit per Deck :
- SP12T
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Voltage - Rated AC :
- 125V
- Actuator Type :
- Flatted (6.35mm Dia)
- Datasheets
- C4D0612N-A
