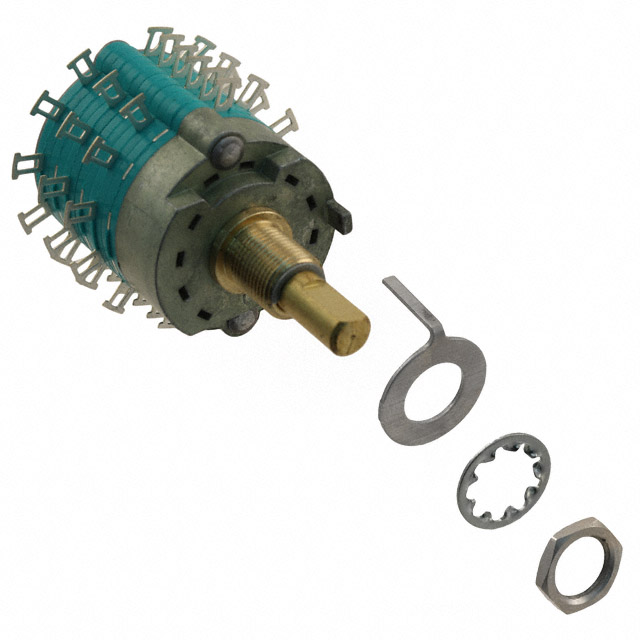

C4D0606N-A
Or copy the link below:
- Mfr.Part #
- C4D0606N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-6POS 300MA 125V
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Contact Style :
- Non-Shorting
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Contact Material :
- Brass
- Mechanical Life :
- 25000 cycles
- Series :
- C4
- Ratings :
- IP67
- Current Rating :
- 500mA
- Voltage - Rated DC :
- 28V
- Max Voltage Rating (AC) :
- 125V
- Published :
- 2006
- Termination :
- Lug
- Index Angle :
- 30 °
- Depth Behind Panel :
- 34.54mm
- Voltage - Rated AC :
- 125V
- Diameter :
- 6.35mm
- Mount :
- Panel
- Number of Positions :
- 2 ~ 6
- Contact Finish :
- Silver
- Illumination Type :
- Illuminated
- Number of Poles :
- 6
- Number of Decks :
- 3
- Number of Poles per Deck :
- 2
- Actuator Type :
- Flatted (6.35mm Dia)
- Insulation Resistance :
- 10GOhm
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Contact Timing :
- Non-Shorting (BBM)
- Termination Style :
- Solder Lug
- Max Voltage Rating (DC) :
- 28V
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ECCN Code :
- EAR99
- Mounting Type :
- Panel Mount
- Throw Configuration :
- 6P6T, DP6T
- Switch Type :
- ROTARY SWITCH
- Circuit per Deck :
- DP6T
- Actuator Length :
- 12.70mm
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- Unknown
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Factory Lead Time :
- 6 Weeks
- Depth :
- 34.544mm
- Contact Resistance :
- 3mOhm
- Index Stops :
- Adjustable
- Datasheets
- C4D0606N-A
C4D0606N-A datasheet pdf and Rotary Switches product details from Electroswitch stock available at
