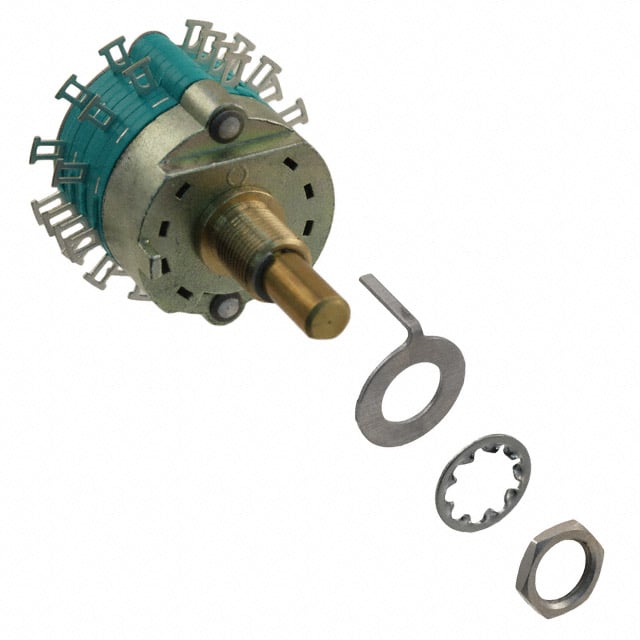

C4D0604N-A
Or copy the link below:
- Mfr.Part #
- C4D0604N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-4POS 300MA 125V
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Throw Configuration :
- 3P4T, 6P4T
- Contact Style :
- Non-Shorting
- Mount :
- Panel
- Contact Timing :
- Non-Shorting (BBM)
- Max Voltage Rating (DC) :
- 28V
- Panel Cutout Dimensions :
- Circular - 9.78mm Dia
- Actuator Length :
- 12.70mm
- Number of Decks :
- 2
- Contact Resistance :
- 3mOhm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Diameter :
- 6.35mm
- Max Voltage Rating (AC) :
- 125V
- Depth Behind Panel :
- 27.33mm
- Contact Plating :
- Silver
- Voltage - Rated :
- 28V
- Circuit per Deck :
- 3P4T
- Angle of Throw :
- 30°
- Index Stops :
- Adjustable
- Actuator Type :
- Flatted (6.35mm Dia)
- Current Rating :
- 500mA
- Mechanical Life :
- 25000 cycles
- Current Rating (Amps) :
- 300mA AC 500mA DC
- Insulation Resistance :
- 10GOhm
- Illumination Type :
- Illuminated
- Lead Free :
- Contains Lead
- Orientation :
- Straight
- Index Angle :
- 30 °
- Mounting Type :
- Panel Mount
- Depth :
- 27.3304mm
- Number of Poles :
- 6
- Termination :
- Lug
- Published :
- 2006
- Contact Finish :
- Silver
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 6 Weeks
- Voltage - Rated DC :
- 28V
- Number of Poles per Deck :
- 3
- Series :
- C4
- Termination Style :
- Solder Lug
- Voltage - Rated AC :
- 125V
- Ratings :
- IP67
- Number of Positions :
- 2 ~ 4
- Datasheets
- C4D0604N-A
