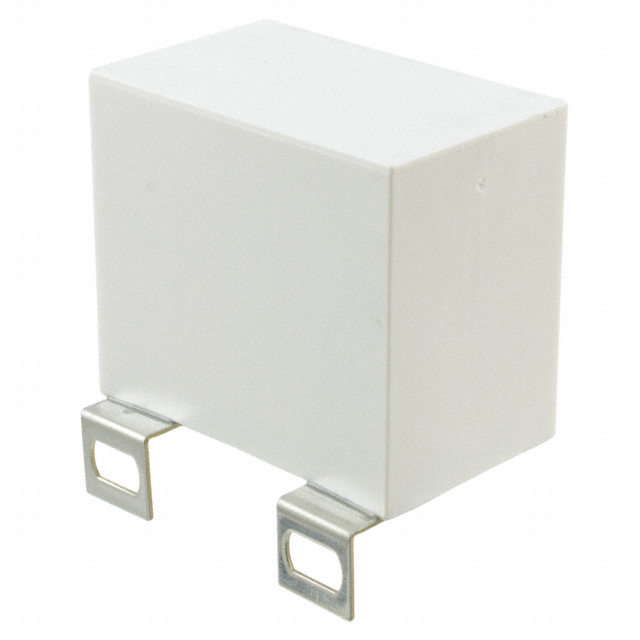

C4BTHBX5200ZANJ
Or copy the link below:
- Mfr.Part #
- C4BTHBX5200ZANJ
- Manufacturer
- KEMET
- Package / Case
- Rectangular Box
- Datasheet
- Download
- Description
- CAP FILM 20UF 5% 600VDC SCREW
- Stock
- 189
- In Stock ：
- 189
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Film Capacitors
- Dielectric Material :
- Polypropylene (PP), Metallized
- Voltage - Rated DC :
- 600V
- Height Seated (Max) :
- 1.969 50.00mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Capacitance :
- 20μF
- ESR (Equivalent Series Resistance) :
- 1.7MOhm
- Lead Pitch :
- 40.9956mm
- Termination :
- Screw Terminals
- Height :
- 35mm
- Applications :
- DC Link, DC Filtering; High Frequency, Switching
- Operating Temperature :
- -40°C~85°C
- Voltage - Rated AC :
- 330V
- Factory Lead Time :
- 21 Weeks
- Tolerance :
- ±5%
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2007
- Lead Spacing :
- 1.614 41.00mm
- Size / Dimension :
- 2.264Lx1.378W 57.50mmx35.00mm
- Mount :
- Chassis Mount
- Package / Case :
- Rectangular Box
- Series :
- C4BT
- Mounting Type :
- Chassis Mount
- Pbfree Code :
- yes
- Datasheets
- C4BTHBX5200ZANJ
C4BTHBX5200ZANJ Documents
C4BT 20μF Film Capacitor ±5% Rectangular Box Screw Terminals 600V-DC 330V-AC Polypropylene (PP), Metallized Chassis Mount
C4BTHBX5200ZANJ Overview
1.7mOhm ESR (Equivalent Series Resistance) is present on the device.A 1.614 41.00mm lead spacing is used in this electrical device.In a temperature range of -40°C~85°C, the device can be operated.
C4BTHBX5200ZANJ Features
1.7mOhm equivalent series resistance (ESR)
C4BTHBX5200ZANJ Applications
There are a lot of KEMET
C4BTHBX5200ZANJ applications of film capacitors.
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
