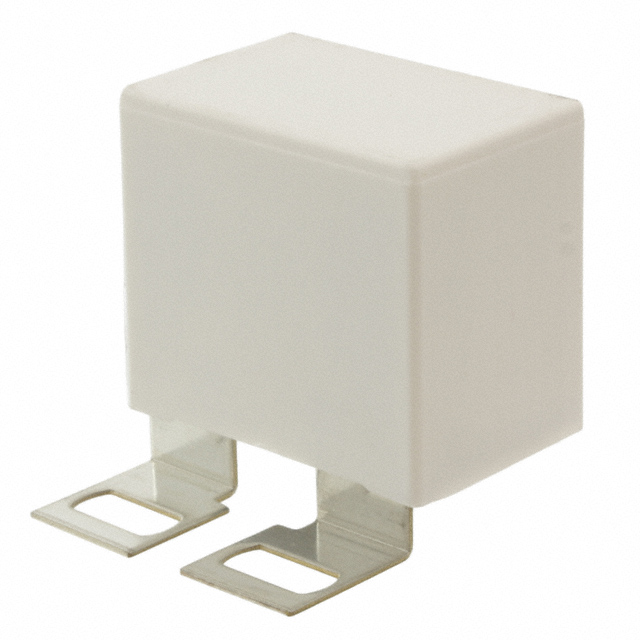

C4BSPBX4100ZBJJ
Or copy the link below:
- Mfr.Part #
- C4BSPBX4100ZBJJ
- Manufacturer
- KEMET
- Package / Case
- Rectangular Box
- Datasheet
- Download
- Description
- CAP FILM 1UF 5% 1.2KVDC SCREW
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Film Capacitors
- Lead Spacing :
- 0.866 22.00mm
- Operating Temperature :
- -40°C~85°C
- Size / Dimension :
- 1.673Lx1.102W 42.50mmx28.00mm
- Mounting Type :
- Chassis Mount
- Termination :
- Screw Terminals
- Applications :
- DC Link, DC Filtering; Snubber
- Voltage :
- 1.2kV
- Height Seated (Max) :
- 1.457 37.00mm
- Capacitance :
- 1μF
- RoHS Status :
- ROHS3 Compliant
- Lead Diameter :
- 800 µm
- Factory Lead Time :
- 21 Weeks
- Series :
- C4BS
- Tolerance :
- ±5%
- Dielectric :
- PP
- Voltage - Rated DC :
- 1200V 1.2kV
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Voltage - Rated AC :
- 630V
- Package / Case :
- Rectangular Box
- Height :
- 37mm
- Pbfree Code :
- yes
- Depth :
- 28mm
- ESR (Equivalent Series Resistance) :
- 3.3MOhm
- Lead Length :
- 17mm
- Mount :
- Chassis Mount
- Lead Pitch :
- 21.9964mm
- Published :
- 2007
- Dielectric Material :
- Polypropylene (PP), Metallized
- Datasheets
- C4BSPBX4100ZBJJ
C4BS 1μF Film Capacitor ±5% Rectangular Box Screw Terminals 1200V 1.2kV-DC 630V-AC Polypropylene (PP), Metallized Chassis Mount
C4BSPBX4100ZBJJ Overview
It has 3.3mOhm ESR (Equivalent Series Resistance).Electrical devices with 0.866 22.00mm lead spacing are used in this application.A temperature of -40°C~85°C is suitable for operation of the device.
C4BSPBX4100ZBJJ Features
3.3mOhm equivalent series resistance (ESR)
C4BSPBX4100ZBJJ Applications
There are a lot of KEMET
C4BSPBX4100ZBJJ applications of film capacitors.
- Industrial and automotive inverters
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
