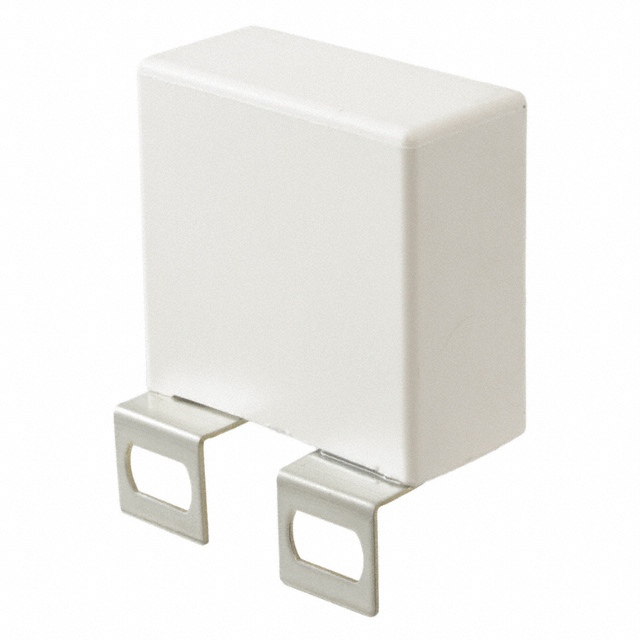

C4BSPBX3680ZAFJ
Or copy the link below:
- Mfr.Part #
- C4BSPBX3680ZAFJ
- Manufacturer
- KEMET
- Package / Case
- Rectangular Box
- Datasheet
- Download
- Description
- CAP FILM 0.68UF 5% 1.2KVDC SCREW
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Film Capacitors
- Height Seated (Max) :
- 1.575 40.00mm
- Published :
- 2007
- Capacitance :
- 0.68µF
- Mount :
- Chassis Mount
- Voltage - Rated DC :
- 1200V 1.2kV
- Factory Lead Time :
- 21 Weeks
- Radiation Hardening :
- No
- RoHS Status :
- ROHS3 Compliant
- Depth :
- 20mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Lead Spacing :
- 1.004 25.50mm
- Termination :
- Screw Terminals
- Voltage - Rated AC :
- 630V
- Pbfree Code :
- yes
- Package / Case :
- Rectangular Box
- Size / Dimension :
- 1.634Lx0.787W 41.50mmx20.00mm
- Height :
- 40mm
- Lead Diameter :
- 800 µm
- Applications :
- DC Link, DC Filtering; Snubber
- ESR (Equivalent Series Resistance) :
- 4.7MOhm
- Mounting Type :
- Chassis Mount
- Operating Temperature :
- -40°C~85°C
- Dielectric Material :
- Polypropylene (PP), Metallized
- Lead Pitch :
- 25.5016mm
- Dielectric :
- PP
- Lead Length :
- 17mm
- Series :
- C4BS
- Voltage :
- 1.2kV
- Tolerance :
- ±5%
- Datasheets
- C4BSPBX3680ZAFJ
C4BS 0.68μF Film Capacitor ±5% Rectangular Box Screw Terminals 1200V 1.2kV-DC 630V-AC Polypropylene (PP), Metallized Chassis Mount
C4BSPBX3680ZAFJ Overview
This device has 4.7mOhm ESR (Equivalent Series Resistance).Electrical devices such as this have a lead spacing of 1.004 25.50mm.In addition to operating at -40°C~85°C degrees, the device is capable of operating at other temperatures as well.
C4BSPBX3680ZAFJ Features
4.7mOhm equivalent series resistance (ESR)
C4BSPBX3680ZAFJ Applications
There are a lot of KEMET
C4BSPBX3680ZAFJ applications of film capacitors.
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
- Switch mode power supplies
