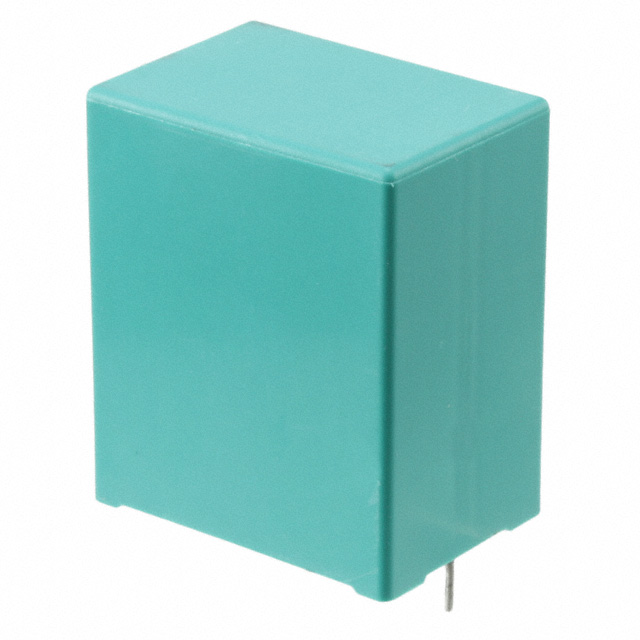

C4AEGBU5200A12J
Or copy the link below:
- Mfr.Part #
- C4AEGBU5200A12J
- Manufacturer
- KEMET
- Package / Case
- Radial
- Datasheet
- Download
- Description
- CAP FILM 20UF 5% 450VDC RADIAL
- Stock
- 119
- In Stock ：
- 119
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Film Capacitors
- Lead Diameter :
- 800 µm
- Pbfree Code :
- yes
- Terminal Finish :
- Matte Tin (Sn)
- Factory Lead Time :
- 21 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8532.25.00.70
- Lead Spacing :
- 1.083 27.50mm
- Capacitance :
- 20μF
- Termination :
- PC Pins
- Terminal Shape :
- Wire
- Mounting Type :
- Through Hole
- Depth :
- 22mm
- Height Seated (Max) :
- 1.465 37.20mm
- Length :
- 31.5mm
- Series :
- C4AE
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Dielectric Material :
- Polypropylene (PP), Metallized
- Number of Terminations :
- 2
- Terminal Pitch :
- 27.5mm
- Lead Free :
- Lead Free
- Capacitor Type :
- FILM CAPACITOR
- Size / Dimension :
- 1.240Lx0.866W 31.50mmx22.00mm
- ECCN Code :
- EAR99
- JESD-609 Code :
- e3
- Package / Case :
- Radial
- Voltage - Rated AC :
- 450V
- Operating Temperature :
- -40°C~85°C
- Applications :
- DC Link, DC Filtering; High Frequency, Switching
- Dielectric :
- PP
- Voltage - Rated DC :
- 450V
- Published :
- 2016
- Lead Pitch :
- 27.5082mm
- Tolerance :
- ±5%
- ESR (Equivalent Series Resistance) :
- 4.8mOhm
- Datasheets
- C4AEGBU5200A12J
C4AE 20μF Film Capacitor ±5% Radial PC Pins 450V-DC 450V-AC Polypropylene (PP), Metallized Through Hole
C4AEGBU5200A12J Overview
In this device, the ESR (Equivalent Series Resistance) is 4.8mOhm.Its lead spacing is 1.083 27.50mm.Temperatures of -40°C~85°C allow the device to operate.
C4AEGBU5200A12J Features
4.8mOhm equivalent series resistance (ESR)
C4AEGBU5200A12J Applications
There are a lot of KEMET
C4AEGBU5200A12J applications of film capacitors.
- Battery management system
- Test and measuring equipment
- RF Modules
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
