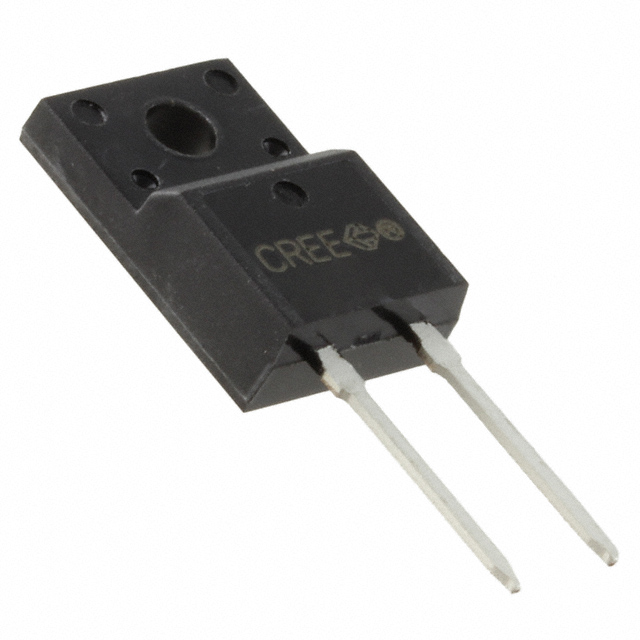

C3D06060F

Manufacturer :

Wolfspeed

Product Category :

Diodes - Rectifiers - Single

Min Operating Temperature :

-55°C

Capacitance @ Vr, F :

294pF @ 0V 1MHz

Series :

Z-Rec®

Speed :

No Recovery Time > 500mA (Io)

Mount :

Through Hole

Peak Non-Repetitive Surge Current :

200A

Max Repetitive Reverse Voltage (Vrrm) :

600V

Supplier Device Package :

TO-220-F2

Max Surge Current :

200A

REACH SVHC :

Unknown

Current - Reverse Leakage @ Vr :

50μA @ 600V

Forward Voltage :

1.8V

Max Reverse Leakage Current :

50μA

Published :

2012

Operating Temperature - Junction :

-55°C~175°C

Max Reverse Voltage (DC) :

600V

Mounting Type :

Through Hole

Package / Case :

TO-220-2 Full Pack

Number of Pins :

2

Voltage - Forward (Vf) (Max) @ If :

1.8V @ 6A

Current - Average Rectified (Io) :

7.5A DC

RoHS Status :

RoHS Compliant

Max Forward Surge Current (Ifsm) :

44A

Element Configuration :

Single

Diode Type :

Silicon Carbide Schottky

Forward Current :

6A

Max Power Dissipation :

17W

Factory Lead Time :

6 Weeks

Packaging :

Tube

Peak Reverse Current :

50μA

Max Operating Temperature :

175°C

Reverse Recovery Time :

0 s

Voltage - DC Reverse (Vr) (Max) :

600V

Average Rectified Current :

6A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
