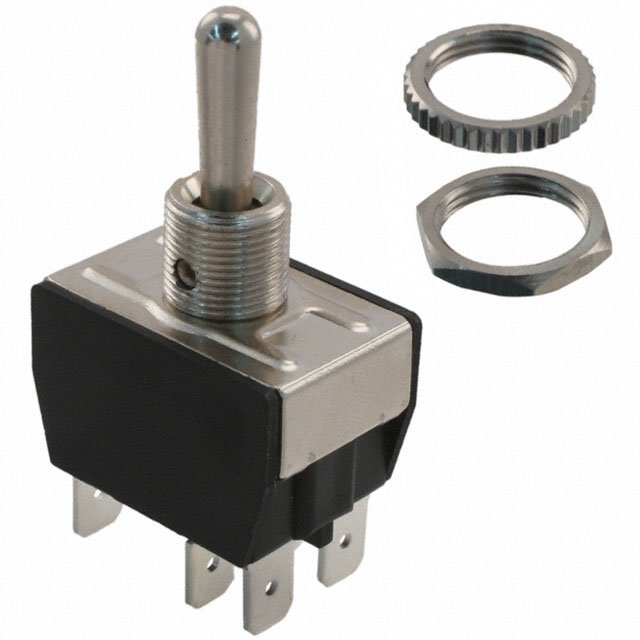

C3972BA
Or copy the link below:
- Mfr.Part #
- C3972BA
- Manufacturer
- Bulgin
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 16A 125V
- Stock
- 957
- In Stock ：
- 957
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Bulgin
- Product Category :
- RoHS Status :
- ROHS3 Compliant
- Circuit :
- DPDT
- Contact Voltage(AC)-Max :
- 277V
- Surface Mount :
- No
- Mounting Type :
- Panel Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Body Height :
- 16.9926mm
- Contact Current(DC)-Max :
- 14A
- Current Rating (Amps) :
- 16A AC 14A DC
- Panel Cutout Dimensions :
- Circular - 12.70mm Dia
- Illumination :
- Non-Illuminated
- Actuator Finish :
- Nickel
- Bushing Thread :
- 15/32-32
- Switch Function :
- Mom-Off-Mom
- Packaging :
- Bulk
- Contact Voltage(DC)-Max :
- 36V
- Switch Type :
- TOGGLE SWITCH
- HTS Code :
- 8536.50.90.40
- Factory Lead Time :
- 24 Weeks
- Series :
- 3900
- Voltage - Rated DC :
- 36V
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- ECCN Code :
- EAR99
- Actuator Length :
- 17.50mm
- Actuator Type :
- Standard Round
- Insulation Resistance :
- 20000000Ohm
- Contact (AC) Max Rating R Load :
- 16A@277VAC
- Contact Current(AC)-Max :
- 16A
- Voltage - Rated AC :
- 125V
- Contact Resistance :
- 0.1mOhm
- Contact Function :
- On-Off-On
- Datasheets
- C3972BA
