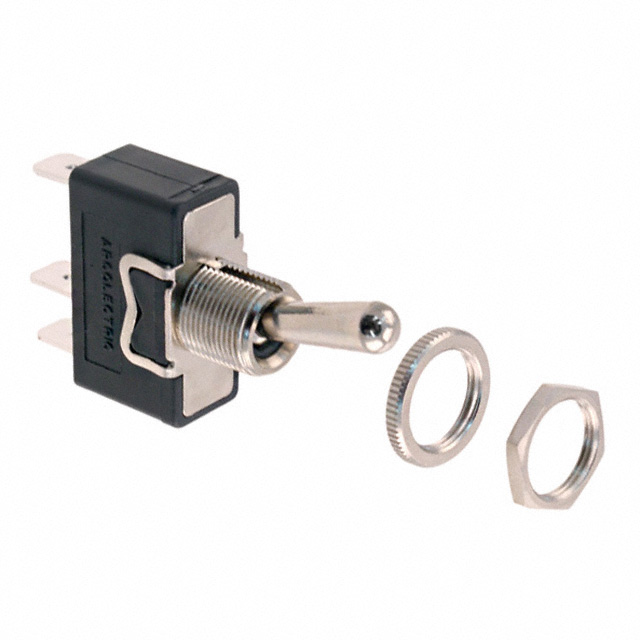

C3910BA

Manufacturer :

Bulgin

Product Category :

Contact Function :

On-On

Manufacturer :

Bulgin

Actuator Type :

METAL LEVER

Base/Housing Material :

Nylon 6.6

Pole Throw Configuration :

SPDT

Contact Voltage(DC)-Max :

36 V

Contact Current(DC)-Max :

14 A

Termination Style :

Quick Connect

Lamp Type :

-

Sealing :

IP67

Surface Mount :

No

ECCN Code :

EAR99

Product Height (mm) :

55.5(mm)

Contact Form :

SPDT

Housing Material :

NYLON 6.6/N/A

Insulation Resistance :

20000000 Ω

Body Orientation :

Straight

Reach Compliance Code :

Compliant

Switch Type :

TOGGLE SWITCH

Contact Resistance :

0.1 mΩ

Dielectric Strength :

>1500VAC/>1500VDC

Actuator Length :

0.689 inch

Number of Terminals :

3

Body Breadth :

14 mm

Mounting Style :

Panel Mount

Illumination Color :

-

Switch Function :

ON - ON

Mounting Feature :

PANEL MOUNT-THREADED

Switch Configuration :

ON ON

Body Height :

17 mm

Current Rating :

16 A

Actuator Material :

Metal

Body Length or Diameter :

29.5 mm

Contact Material :

Silver Alloy

Actuator Length (mm) :

17.5(mm)

Current Rating (Max) :

16@277VAC(A)

IP Rating :

IP67

Actuator Style :

Round Lever

Product Length (mm) :

29.5(mm)

DC Voltage Rating (Max) :

72@(CSA/UL)

Thread Size :

15/32-32

HTS Code :

8536.50.90.65

Actuator Finish :

Nickel

Contact Current(AC)-Max :

16 A

AC Voltage Rating (Max) :

277

Bushing Type :

Threaded

Compliance :

UL; CSA

Actuator :

Bat

Termination Type :

Quick Connect

Switch Action :

LATCHED

Contact Voltage(AC)-Max :

277 V
