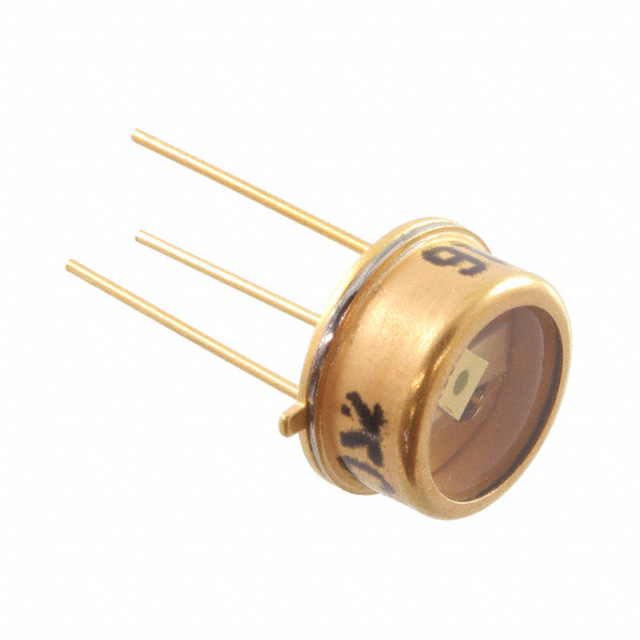

C30954EH
Or copy the link below:
- Mfr.Part #
- C30954EH
- Manufacturer
- Excelitas Technologies
- Package / Case
- TO-205AA, TO-5-3 Metal Can
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 1064NM TO-5
- Stock
- 70
- In Stock ：
- 70
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Excelitas Technologies
- Product Category :
- Optical Sensors - Photodiodes
- Dark Current-Max :
- 100nA
- Semiconductor Material :
- SILICON
- RoHS Status :
- RoHS Compliant
- Shape :
- Round
- Package / Case :
- TO-205AA, TO-5-3 Metal Can
- Responsivity @ nm :
- 36 A/W @ 1060nm
- Infrared Range :
- yes
- Reverse Breakdown Voltage-Min :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~70°C
- Wavelength :
- 1064nm
- Voltage - DC Reverse (Vr) (Max) :
- 475V
- Number of Functions :
- 1
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 32 Weeks
- Additional Feature :
- LOW NOISE
- Diode Type :
- Avalanche
- Configuration :
- Single
- Surface Mount :
- No
- Current - Dark (Typ) :
- 50nA
- Response Time :
- 3ns
- HTS Code :
- 8541.40.60.50
- Size :
- 0.8mm
- Datasheets
- C30954EH
C30954EH Documents
Through Hole -40°C~70°C Wavelength: 1064nm TO-205AA, TO-5-3 Metal Can 475V 0.50mm2 3ns
C30954EH Overview
It is necessary to enclose the photodiodes in TO-205AA, TO-5-3 Metal Can packages for safety purposes. As long as the photodiodes are operated in reverse- bias mode continuously, their maximum voltage is 475V.
C30954EH Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~70°C
Diode Type: Avalanche
Response Time: 3ns
Responsivity @ nm: 36 A/W @ 1060nm
C30954EH Applications
There are a lot of Excelitas Technologies
C30954EH Photodiodes applications.
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
- Pure UV-C Monitoring
