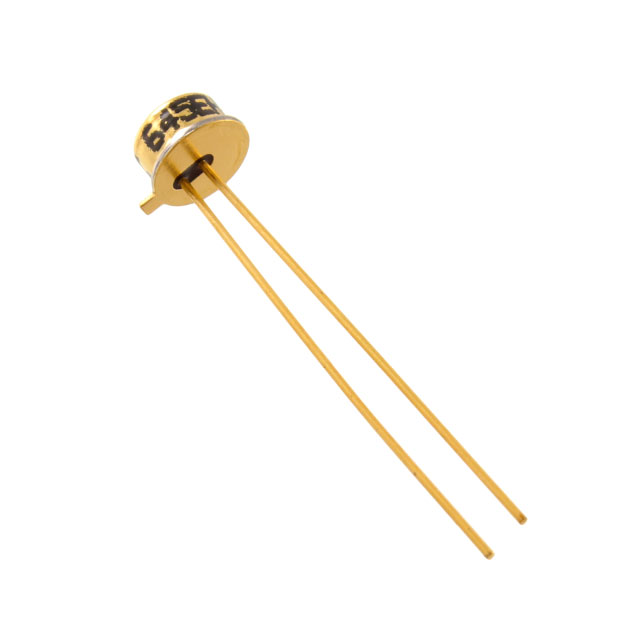

C30645EH
Or copy the link below:
- Mfr.Part #
- C30645EH
- Manufacturer
- Excelitas Technologies
- Package / Case
- TO-18-2 Metal Can
- Datasheet
- Download
- Description
- INGAAS APD LOWPROFILE 80UM TO-18
- Stock
- 86
- In Stock ：
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Excelitas Technologies
- Product Category :
- Optical Sensors - Photodiodes
- Active Area :
- 80μm Dia
- Factory Lead Time :
- 17 Weeks
- Voltage - DC Reverse (Vr) (Max) :
- 70V
- RoHS Status :
- ROHS3 Compliant
- Diode Type :
- Avalanche
- Operating Temperature :
- -20°C~70°C
- Number of Functions :
- 1
- Series :
- C30645
- Size :
- 0.08mm
- Reverse Breakdown Voltage-Min :
- 45V
- Package / Case :
- TO-18-2 Metal Can
- Surface Mount :
- No
- Configuration :
- Single
- HTS Code :
- 8541.40.60.50
- Dark Current-Max :
- 50nA
- Mounting Type :
- Through Hole
- Shape :
- Round
- Current - Dark (Typ) :
- 3nA
- Responsivity @ nm :
- 9.3 A/W @ 1550nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Semiconductor Material :
- InGaAs
- Wavelength :
- 1550nm
- Spectral Range :
- 1100nm ~ 1700nm
- Datasheets
- C30645EH
C30645EH Documents
Through Hole -20°C~70°C Wavelength: 1550nm TO-18-2 Metal Can 70V 80μm Dia
C30645EH Overview
It is necessary to place the photodiodes into TO-18-2 Metal Can packages in order to protect them from damage. A continuous reverse-bias mode can only sustain 70V voltage per photodiode.
C30645EH Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -20°C~70°C
Diode Type: Avalanche
Spectral Range: 1100nm ~ 1700nm
Responsivity @ nm: 9.3 A/W @ 1550nm
C30645EH Applications
There are a lot of Excelitas Technologies
C30645EH Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
