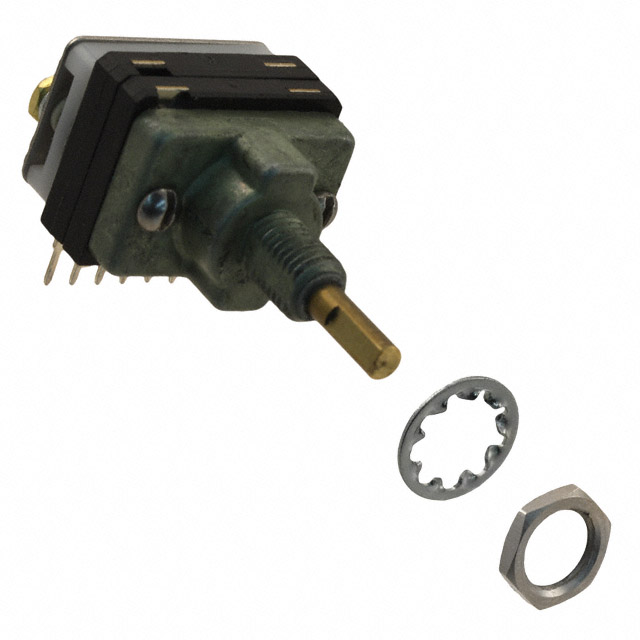

C2P0108N-A
Or copy the link below:
- Mfr.Part #
- C2P0108N-A
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 2-8POS 100MA 125V
- Stock
- 131
- In Stock ：
- 131
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Sealing :
- Epoxy
- Voltage - Rated DC :
- 28V
- Panel Cutout Dimensions :
- Circular - 6.76mm Dia
- Reach Compliance Code :
- Unknown
- Contact (DC) Max Rating R Load :
- 0.25A@28VDC
- Contact Finish :
- Silver
- Actuator Type :
- Flatted (3.17mm Dia)
- Factory Lead Time :
- 6 Weeks
- Electrical Life :
- 25000 Cycle(s)
- Lead Free :
- Lead Free
- Contact Timing :
- Non-Shorting (BBM)
- Contact Material :
- Brass
- Additional Feature :
- NON-CORROSIVE MATERIALS
- Current Rating :
- 250mA
- Body Length or Diameter :
- 20.828mm
- Contact Current(DC)-Max :
- 0.25A
- Termination :
- PC Pin
- RoHS Status :
- RoHS Compliant
- Termination Style :
- PC Pin
- Mechanical Life :
- 25000 cycles
- Mount :
- Panel, Through Hole
- Number of Positions :
- 2 ~ 8
- Contact Resistance :
- 0.03mOhm
- Current Rating (Amps) :
- 100mA AC 250mA DC
- Voltage - Rated AC :
- 125V
- PCB Hole Count :
- 10
- Housing Material :
- Polyester
- Published :
- 2006
- Index Stops :
- Adjustable
- Contact Function :
- On-On
- Circuit per Deck :
- SP8T
- Number of Decks :
- 1
- Actuator Length :
- 9.52mm
- Switch Type :
- ROTARY SWITCH
- Index Angle :
- 30 °
- Series :
- C2
- Orientation :
- RIGHT ANGLE
- Depth Behind Panel :
- 22.38mm
- Max Voltage Rating (AC) :
- 125V
- Max Voltage Rating (DC) :
- 28V
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Style :
- Non-Shorting
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Datasheets
- C2P0108N-A
