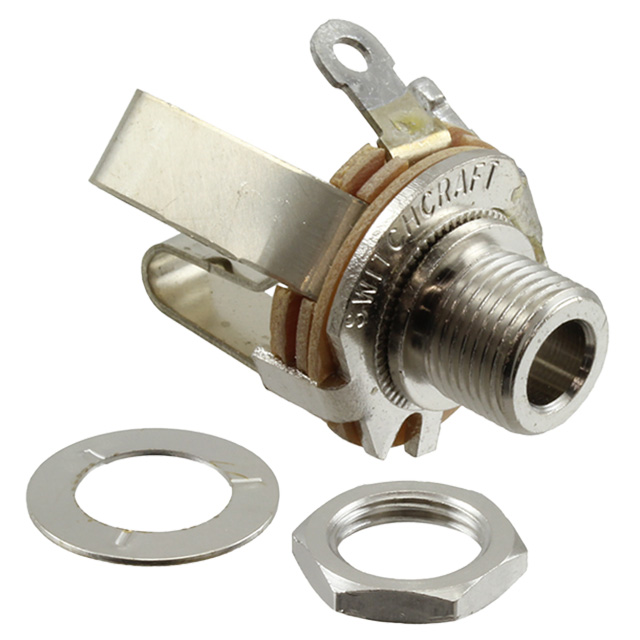

C12BX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Max Voltage Rating (DC) :

25V

Operating Temperature :

-20°C~65°C

Series :

LITTEL-JAX®

Factory Lead Time :

8 Weeks

Max Current Rating :

1A

Contact Material :

COPPER ALLOY

Package / Case :

Metal

Moisture Sensitivity Level (MSL) :

Not Applicable

REACH SVHC :

Unknown

Number of Positions/Contacts :

3 Conductors, 3 Contacts

Housing Material :

Plastic

Length :

19.05mm

Published :

1998

Body Material :

COPPER ALLOY

Panel Hole Size :

0.375 9.52mm

Current Rating :

1A

Packaging :

Bulk

Body Color :

Silver

Contact Material - Plating :

Nickel

Shielding :

Unshielded

Industry Recognized Mating Diameter :

5.23mm (0.206)

Connector Type :

Phone Jack

Mating Length/Depth :

1.090 27.70mm

Orientation :

Straight

Number of Ports :

1

Thread Size :

3/8-32

Signal Lines :

Stereo (3 Conductor, TRS)

Voltage - Rated :

25Vdc

Mount :

Chassis, Chassis Mount, Panel, Through Hole

Feature :

Mounting Hardware, Thread Lock

Internal Switch(s) :

Does Not Contain Switch

Gender :

FEMALE

Actual Diameter :

0.210 (5.33mm)

Number of Terminations :

3

Termination :

Solder Eyelet(s)

Mounting Type :

Panel Mount

RoHS Status :

ROHS3 Compliant
