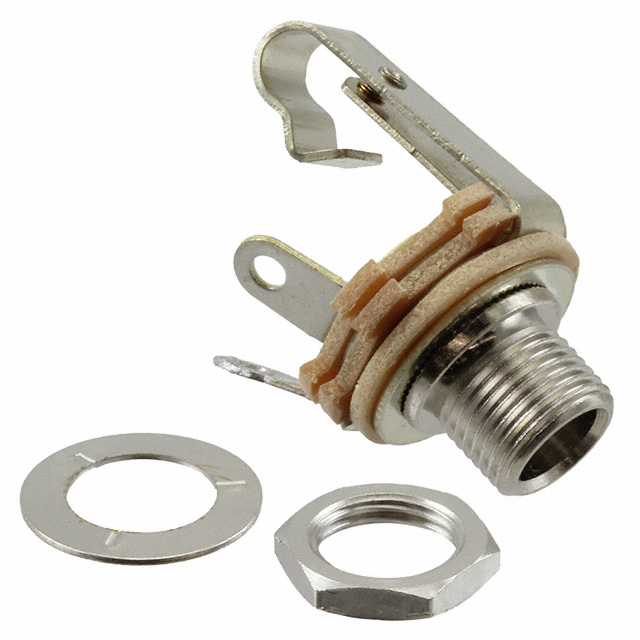

C12AX

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Published :

1998

Current Rating :

1A

Moisture Sensitivity Level (MSL) :

Not Applicable

REACH SVHC :

Unknown

Contact Material :

COPPER ALLOY

Series :

LITTEL-JAX®

Mounting Type :

Panel Mount

Mount :

Chassis, Chassis Mount, Panel, Through Hole

Housing Material :

Plastic

Packaging :

Bulk

Shielding :

Unshielded

Thread Size :

3/8-32

Current Rating (Amps) :

1A

Body Material :

COPPER ALLOY

Voltage - Rated :

25Vdc

Orientation :

Straight

Number of Contacts :

2

Signal Lines :

Mono

Operating Temperature :

-20°C~65°C

Connector Type :

Phone Jack

Max Operating Temperature :

65°C

Contact Material - Plating :

Nickel

RoHS Status :

ROHS3 Compliant

Max Current Rating :

1A

Actual Diameter :

0.250 (6.35mm)

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Gender :

FEMALE

Number of Terminations :

2

Factory Lead Time :

12 Weeks

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Number of Ports :

1

Body Color :

Silver

Feature :

Mounting Hardware, Thread Lock

Internal Switch(s) :

Single Switch

Panel Hole Size :

0.375 9.52mm

Contact Plating :

Silver

Min Operating Temperature :

-20°C

Max Voltage Rating (DC) :

25V

Termination :

Solder Eyelet(s)

Housing Color :

Silver
