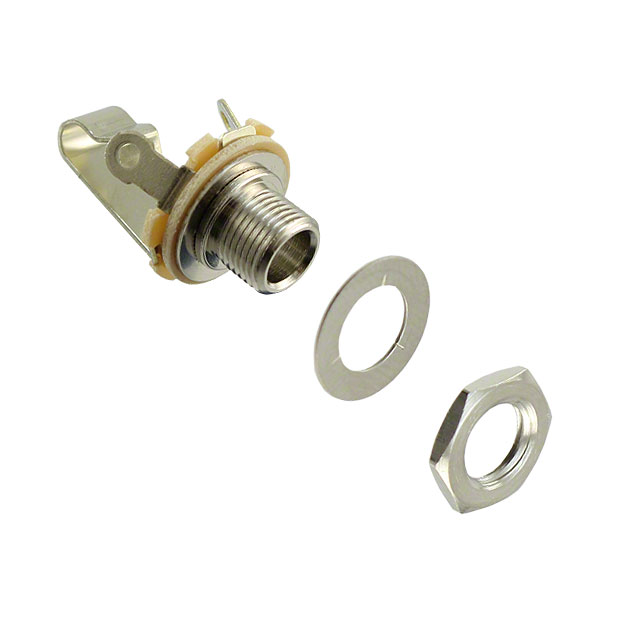

C11X

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Operating Temperature :

-20°C~65°C

Termination :

Solder Eyelet(s)

Thread Size :

3/8-32

Body Color :

Silver

Number of Terminations :

2

Moisture Sensitivity Level (MSL) :

Not Applicable

Body Material :

COPPER ALLOY

Max Operating Temperature :

65°C

Current Rating :

1A

Contact Material :

COPPER ALLOY

Housing Color :

Silver

Mount :

Chassis, Chassis Mount, Panel

Packaging :

Bulk

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Orientation :

Straight

Diameter :

19.05mm

Feature :

Mounting Hardware, Thread Lock

Height :

25.4mm

Max Current Rating :

1A

Panel Hole Size :

0.375 9.52mm

Shielding :

Unshielded

Min Operating Temperature :

-20°C

Actual Diameter :

0.250 (6.35mm)

Signal Lines :

Mono

Max Voltage Rating (DC) :

25V

Voltage - Rated :

25Vdc

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Contact Plating :

Nickel

Series :

LITTEL-JAX®

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Connector Type :

Phone Jack

Factory Lead Time :

8 Weeks

Number of Contacts :

3

Internal Switch(s) :

Does Not Contain Switch

REACH SVHC :

Unknown

Contact Material - Plating :

Nickel

Current Rating (Amps) :

1A

RoHS Status :

ROHS3 Compliant

Number of Ports :

1

Gender :

FEMALE

Mounting Type :

Panel Mount
