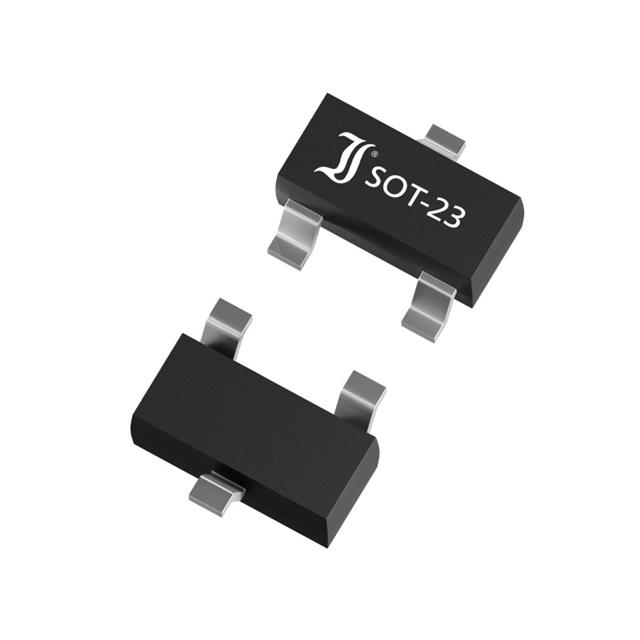

BZX84B15
Or copy the link below:
- Mfr.Part #
- BZX84B15
- Manufacturer
- Diotec Semiconductor
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Datasheet
- Download
- Description
- Zener, 15V, 0.3W, 2%
- Stock
- 3,000
- In Stock ：
- 3,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Zener - Single
- Pbfree Code :
- yes
- Terminal Form :
- Gull wing
- Current - Reverse Leakage @ Vr :
- 100nA @ 10.5V
- ECCN Code :
- EAR99
- Width :
- 1.4mm
- Tolerance :
- ±2%
- RoHS Status :
- ROHS3 Compliant
- Height :
- 1.1mm
- Terminal Position :
- Dual
- Impedance-Max :
- 30Ohm
- Lead Free :
- Lead Free
- Diode Element Material :
- SILICON
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diode Type :
- ZENER DIODE
- Reference Voltage :
- 15V
- REACH SVHC :
- No SVHC
- Zener Voltage :
- 15V
- Published :
- 2016
- Base Part Number :
- BZX84B15
- Voltage Tol-Max :
- 2%
- Voltage Tolerance :
- 2%
- Impedance :
- 30Ohm
- Polarity :
- Unidirectional
- Time@Peak Reflow Temperature-Max (s) :
- 40
- HTS Code :
- 8541.10.00.50
- Mounting Type :
- Surface Mount
- Element Configuration :
- Single
- Number of Terminations :
- 3
- Power - Max :
- 300mW
- Number of Elements :
- 1
- Operating Temperature :
- -65°C~150°C
- Max Power Dissipation :
- 350mW
- Factory Lead Time :
- 19 Weeks
- Number of Pins :
- 3
- JESD-609 Code :
- e3
- Packaging :
- Digi-Reel®
- ESD Protection :
- No
- Power Rating :
- 350mW
- Peak Reflow Temperature (Cel) :
- 260
- Package / Case :
- TO-236-3, SC-59, SOT-23-3
- Voltage - Forward (Vf) (Max) @ If :
- 900mV @ 10mA
- Contact Plating :
- Tin
- Max Reverse Leakage Current :
- 100nA
- Length :
- 3mm
- Test Current :
- 5mA
- Mount :
- Surface Mount
- Datasheets
- BZX84B15
ZENER DIODE 30Ohm ±2% 15V 100nA @ 10.5V -65°C~150°C 350mW 3 Terminations TO-236-3, SC-59, SOT-23-3
BZX84B15-7-F Overview
It is necessary to supply this electrical device with a reverse leakage current of 100nA @ 10.5V.A voltage of 2% indicates the maximum voltage (Tol) that can be supplied.Reverse leakage current reaches a maximum of 100nA.For the device to operate, the maximum forward voltage (Vf) 900mV @ 10mA must be supplied.
BZX84B15-7-F Features
reverse leakage current of 100nA @ 10.5V
100nA @ 10.5V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA
BZX84B15-7-F Applications
There are a lot of Diodes Incorporated
BZX84B15-7-F applications of zener single diodes.
