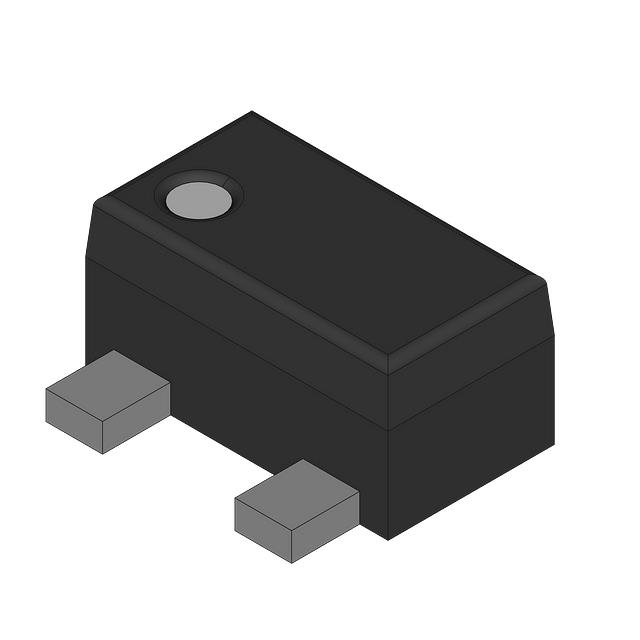

BZB984-C13,115

Manufacturer :

Nexperia

Product Category :

Diodes - Zener - Arrays

HTS Code :

8541.10.00.50

Height :

600μm

Power - Max :

265mW

Max Operating Temperature :

150°C

Zener Voltage :

13V

Number of Pins :

3

Number of Elements :

2

Max Power Dissipation :

425mW

Test Current :

5mA

Width :

1.3mm

Reference Voltage :

13V

Min Operating Temperature :

-65°C

RoHS Status :

ROHS3 Compliant

Impedance-Max :

10Ohm

ECCN Code :

EAR99

Power Dissipation :

425mW

Number of Terminations :

3

Radiation Hardening :

No

Diode Type :

ZENER DIODE

Mount :

Surface Mount

Terminal Form :

Flat

Contact Plating :

Tin

Voltage Tolerance :

5%

Package / Case :

SOT-663

Diode Element Material :

SILICON

Voltage Tol-Max :

5%

Polarity :

Unidirectional

Impedance :

30Ohm

JESD-609 Code :

e3

Mounting Type :

Surface Mount

Element Configuration :

Common Anode

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Reverse Leakage Current :

100nA

Packaging :

Tape and Reel (TR)

Current - Reverse Leakage @ Vr :

100nA @ 8V

Factory Lead Time :

4 Weeks

Tolerance :

±5%

Pin Count :

3

Voltage - Forward (Vf) (Max) @ If :

900mV @ 10mA

ESD Protection :

yes

Published :

1995

Length :

1.7mm

Configuration :

1 Pair Common Anode

Terminal Position :

Dual
