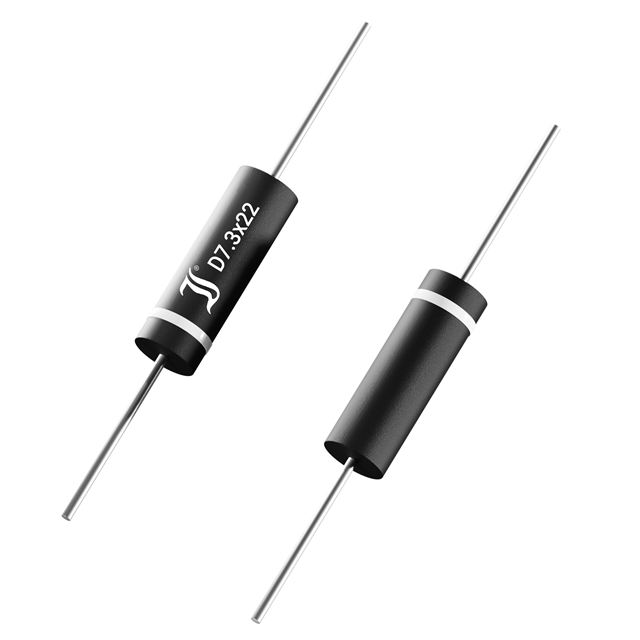

BY4

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Mounting :

Through Hole

RoHS Status :

Yes with exemptions

Peak Forward Voltage (V) :

4

Peak Non-Repetitive Surge Current (A) :

30

Pin Count :

2

Terminal Form :

Wire

Peak Reverse Repetitive Voltage (V) :

4000

Configuration :

Single

Number of Terminals :

2

Supplier Temperature Grade :

COMMERCIAL

Output Current-Max :

1 A

HTS Code :

8541.10.00.80

Diode Type :

RECTIFIER DIODE

Maximum Continuous Forward Current (A) :

1

Packaging :

Tape and Reel

Reach Compliance Code :

Compliant

Surface Mount :

No

Terminal Position :

Axial

Military :

No

Qualification Status :

Not Qualified

Manufacturer :

Diotec Semiconductor AG

HTS :

8541.10.00.80

Number of Elements :

1

Diameter :

7.3

Non-rep Pk Forward Current-Max :

100 A

Package Shape :

Round

ECCN (US) :

EAR99

Package Length :

22

Maximum Operating Temperature (°C) :

150

Minimum Operating Temperature (°C) :

-50

ECCN Code :

EAR99

Case Connection :

Isolated

Diode Element Material :

SILICON

Rep Pk Reverse Voltage-Max :

4000 V

Peak Reverse Current (uA) :

1

JESD-30 Code :

O-PALF-W2

Subcategory :

Rectifier Diodes

Peak Reflow Temperature (Cel) :

260

PCB changed :

2
