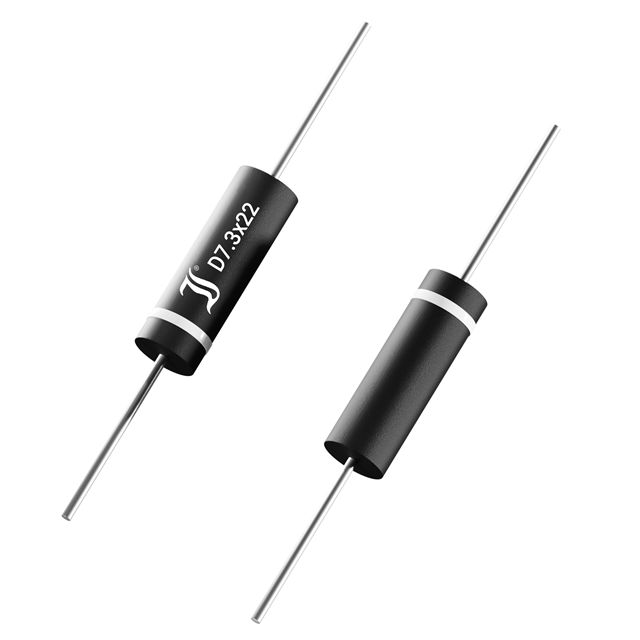

BY16

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Supplier Temperature Grade :

COMMERCIAL

Subcategory :

Rectifier Diodes

PCB changed :

2

Maximum Operating Temperature (°C) :

150

Number of Elements :

1

Package Shape :

Round

Number of Terminals :

2

Packaging :

Tape and Reel

Rep Pk Reverse Voltage-Max :

16000 V

Surface Mount :

No

Peak Reflow Temperature (Cel) :

260

Qualification Status :

Not Qualified

Diode Element Material :

SILICON

Maximum Continuous Forward Current (A) :

0.3

Output Current-Max :

0.3 A

Military :

No

Peak Forward Voltage (V) :

15

Peak Reverse Current (uA) :

1

HTS :

8541.10.00.80

Configuration :

Single

Minimum Operating Temperature (°C) :

-50

Package Length :

22

Diode Type :

RECTIFIER DIODE

Peak Reverse Repetitive Voltage (V) :

16000

Non-rep Pk Forward Current-Max :

100 A

Terminal Position :

Axial

ECCN Code :

EAR99

AEC Qualified :

yes

JESD-30 Code :

O-PALF-W2

Diameter :

7.3

Terminal Form :

Wire

Reach Compliance Code :

Compliant

Manufacturer :

Diotec Semiconductor AG

RoHS Status :

Yes with exemptions

ECCN (US) :

EAR99

Case Connection :

Isolated

HTS Code :

8541.10.00

Peak Non-Repetitive Surge Current (A) :

30

Mounting :

Through Hole

Pin Count :

2
