BY134

Share

Or copy the link below:

Mfr.Part #
BY134
Manufacturer
Diotec Semiconductor
Package / Case
Datasheet
Download
Description
ST Rect, 600V, 1A
Stock
47,331
In Stock :
47,331

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Diotec Semiconductor
Product Category :
Diodes - Rectifiers - Single
Standard Package Name :
DO-204-AL
Maximum Continuous Forward Current (A) :
1@Ta=50C
Non-rep Pk Forward Current-Max :
50 A
HTS :
8541.10.00.80
ECCN Code :
EAR99
Number of Elements :
1
Terminal Form :
Wire
Package Shape :
Round
Peak Reverse Repetitive Voltage (V) :
600
Configuration :
Single
Rep Pk Reverse Voltage-Max :
600 V
Manufacturer :
Diotec Semiconductor AG
AEC Qualified :
yes
Surface Mount :
No
Packaging :
Ammo
Mounting :
Through Hole
Number of Terminals :
2
Qualification Status :
Not Qualified
Reach Compliance Code :
Compliant
Diameter :
2.6
Subcategory :
Rectifier Diodes
Peak Forward Voltage (V) :
1.3
Military :
No
Case Connection :
Isolated
Peak Reverse Recovery Time (ns) :
1500(Typ)
Type :
Switching Diode
Diode Type :
RECTIFIER DIODE
Supplier Package :
DO-41
PCB changed :
2
Minimum Operating Temperature (°C) :
-50
RoHS Status :
Yes with exemptions
JEDEC-95 Code :
DO-204AL
Supplier Temperature Grade :
COMMERCIAL
Terminal Position :
Axial
Lead Shape :
Through Hole
JESD-30 Code :
O-PALF-W2
Output Current-Max :
1 A
Pin Count :
2
HTS Code :
8541.10.00.80
Diode Element Material :
SILICON
ECCN (US) :
EAR99
Peak Reverse Current (uA) :
5
Peak Reflow Temperature (Cel) :
260
Maximum Operating Temperature (°C) :
175
Package Length :
5.1
Peak Non-Repetitive Surge Current (A) :
55
Datasheets
BY134
Introducing Diodes - Rectifiers - Single Diotec Semiconductor BY134 from Chip IC,where excellence meets affordability. This product stands out with its Type:Switching Diode, BY134 pinout, BY134 datasheet PDF, BY134 amp .Beyond Diodes - Rectifiers - Single Diotec Semiconductor BY134 ,we also offer BAT54,235, BAT54,215, BAS16L,315, Our vast inventory has you covered. Contact us now for immediate solutions.

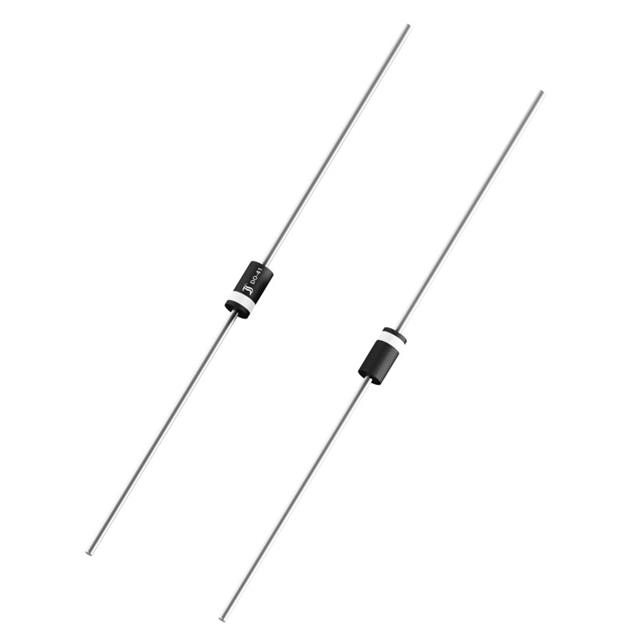

Diotec Semiconductor BY134


RECTIFIER DIODE SILICON 260 AXIAL Ammo

BY134 Overview


In the datasheets, 1.3 is stated as the peak forward voltage.A continuous forward current of 1@Ta=50C is the maximum consumption of this device.This device can read current voltages up to 1 A.

BY134 Features


the forward peak voltage is 1.3
a maximum output current voltage of 1 A


BY134 Applications


There are a lot of Diotec Semiconductor AG
BY134 applications of RF diodes.


  • Radar systems for industrial use
  • Ultra high-speed switching
  • Clamping circuits
  • Diode ring mixer
  • RF detector
  • RF voltage doubler
  • Wearables
  • Smart metering
  • Set top boxes
  • RF attenuators and switches
