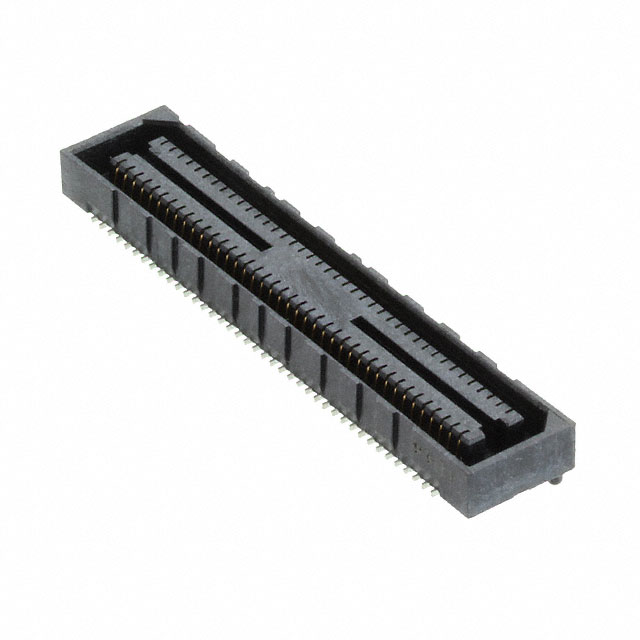

BSE-040-01-L-D-A-TR

Manufacturer :

Samtec, Inc.

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

HTS Code :

8536.69.40.40

Height Above Board :

0.128 3.25mm

Body Length or Diameter :

1.467 inch

Contact Finish Thickness :

10.0μin 0.25μm

Reference Standard :

UL

Rated Current (Signal) :

2A

Number of Positions :

80

Pitch :

0.031 0.80mm

Plating Thickness :

10μin

Mounting Type :

Surface Mount

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Board Mounting Option :

POSITIONING PIN

Body/Shell Style :

Socket

Insulation Resistance :

50000000000Ohm

Contact Material :

Bronze

Series :

BSE

Filter Feature :

No

JESD-609 Code :

e3

UL Flammability Code :

94V-0

Connector Type :

Receptacle, Center Strip Contacts

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Number of Conductors :

ONE

DIN Conformance :

No

Packaging :

Tape and Reel (TR)

Mixed Contacts :

No

Insulation Material :

Liquid Crystal Polymer (LCP)

MIL Conformance :

No

Total Number of Contacts :

80

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Gender :

Receptacle

PCB Contact Row Spacing :

5.7404 mm

Option :

GENERAL PURPOSE

Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Style :

BELLOWED TYPE

Published :

2014

Additional Feature :

E.L.P

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

Feature :

Board Guide

Mounting Option 1 :

LOCKING

Number of Rows :

2

Termination :

Solder

Reliability :

COMMERCIAL

Factory Lead Time :

6 Weeks

Number Of PCB Rows :

2

Stack Height (Mating) :

5mm 8mm

Radiation Hardening :

No

Operating Temperature (Min) :

-65°C

Contact Finish :

Gold
