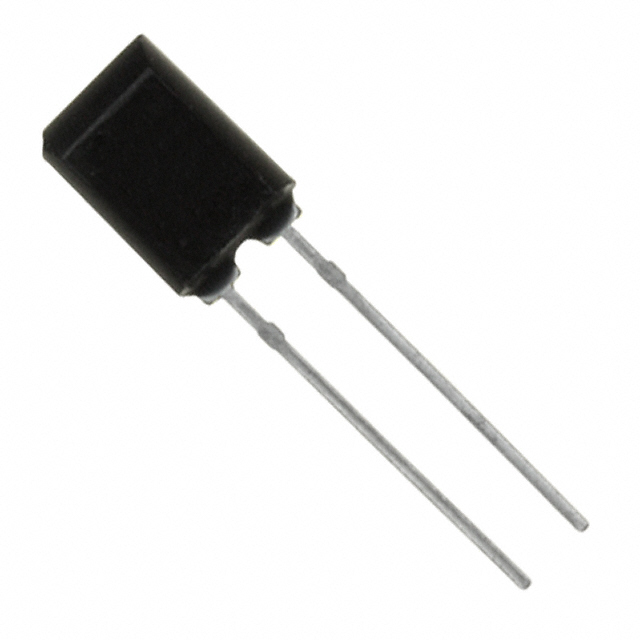

BPW83
Or copy the link below:
- Mfr.Part #
- BPW83
- Manufacturer
- Vishay
- Package / Case
- Radial, Side View
- Datasheet
- Download
- Description
- PHOTODIODE 350 TO 1120 NM
- Stock
- 3,008
- In Stock ：
- 3,008
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Photodiodes
- Published :
- 2008
- Rise Time :
- 100ns
- Power Dissipation :
- 215mW
- REACH SVHC :
- Unknown
- Package / Case :
- Radial, Side View
- HTS Code :
- 8541.40.60.50
- Wavelength :
- 950nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fall Time (Typ) :
- 100 ns
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Viewing Angle :
- 130°
- Packaging :
- Bulk
- Number of Pins :
- 2
- Radiation Hardening :
- No
- Operating Temperature :
- -40°C~100°C
- Active Area :
- 7.5mm2
- Capacitance :
- 40pF
- Spectral Range :
- 790nm ~ 1050nm
- Mounting Type :
- Through Hole
- Max Reverse Voltage (DC) :
- 60V
- Factory Lead Time :
- 7 Weeks
- Breakdown Voltage :
- 60V
- Reverse Voltage :
- 60V
- Dark Current :
- 2nA
- Diode Type :
- Pin
- Reverse Breakdown Voltage :
- 60V
- Datasheets
- BPW83
Through Hole -40°C~100°C Bulk Wavelength: 950nm Radial, Side View 7.5mm2 2nA
BPW83 Overview
To protect them from damage, these photodiodes are packaged in the Bulk. For safety reasons, the photodiodes are packaged in Radial, Side View packages. When operating in reverse-bias mode, the photodiodes should not exceed 60V. There are 2 pins on the photodiodes. In a circuit, photodiodes could release 215mW heat. In the case of photodiodes, the reverse anode voltage should be 60V. To make sure photodiodes work, the breakdown voltage should be 60V. Reverse-biased photodiodes could supply 60V voltage. In the absence of light input, a photodiode produces 2nA current.
BPW83 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 790nm ~ 1050nm
Viewing Angle: 130°
BPW83 Applications
There are a lot of Vishay Semiconductor Opto Division
BPW83 Photodiodes applications.
- Infrared remote control
- Infrared data transmission
- Photo interrupters
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
