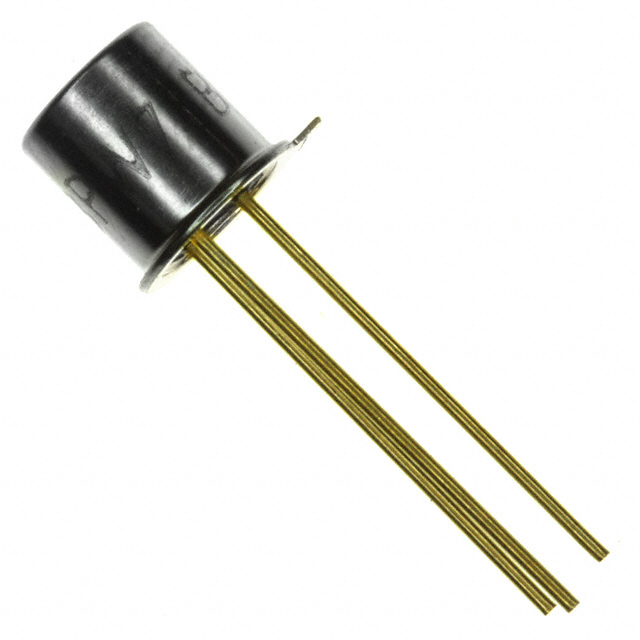

BPW76A
Or copy the link below:
- Mfr.Part #
- BPW76A
- Manufacturer
- Vishay
- Package / Case
- TO-206AA, TO-18-3 Metal Can
- Datasheet
- Download
- Description
- PHOTOTRANSISTOR 450 TO 1080 NM
- Stock
- 4,153
- In Stock ：
- 4,153
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Phototransistors
- Collector Emitter Voltage (VCEO) :
- 80V
- Rise Time :
- 6μs
- Current - Collector (Ic) (Max) :
- 50mA
- Dark Current :
- 100nA
- Max Collector Current :
- 50mA
- Published :
- 2008
- Viewing Angle :
- 80°
- Voltage - Collector Emitter Breakdown (Max) :
- 70V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Mounting Type :
- Through Hole
- Collector Emitter Breakdown Voltage :
- 70V
- Max Operating Temperature :
- 125°C
- Current Rating :
- 50mA
- Max Power Dissipation :
- 250mW
- RoHS Status :
- ROHS3 Compliant
- Number of Pins :
- 3
- Mount :
- Through Hole
- Collector Emitter Saturation Voltage :
- 150mV
- Wavelength :
- 850nm
- Orientation :
- Top View
- Min Operating Temperature :
- -40°C
- Factory Lead Time :
- 12 Weeks
- Package / Case :
- TO-206AA, TO-18-3 Metal Can
- Lens Style :
- Flat
- Power Consumption :
- 250mW
- Max Breakdown Voltage :
- 70V
- Power Dissipation :
- 250mW
- Polarity :
- NPN
- Operating Temperature :
- -40°C~125°C TA
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Power - Max :
- 250mW
- Current - Dark (Id) (Max) :
- 100nA
- Number of Elements :
- 1
- REACH SVHC :
- Unknown
- Datasheets
- BPW76A
BPW76A Documents
BPW76A datasheet pdf and Optical Sensors - Phototransistors product details from Vishay Semiconductor Opto Division stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
Manufacturer related products
Catalog related products
.jpg)
Related products
| Part | Manufacturer | Stock | Description |
|---|---|---|---|
| BPW76B | Vishay | 2,400 | PHOTOTRANSISTOR 450 TO 1080 NM |
| BPW77NA | Vishay | 1,777 | PHOTOTRANSISTOR 450 TO 1080 NM |
| BPW77NB | Vishay | 1 | PHOTOTRANSISTOR 450 TO 1080 NM |
