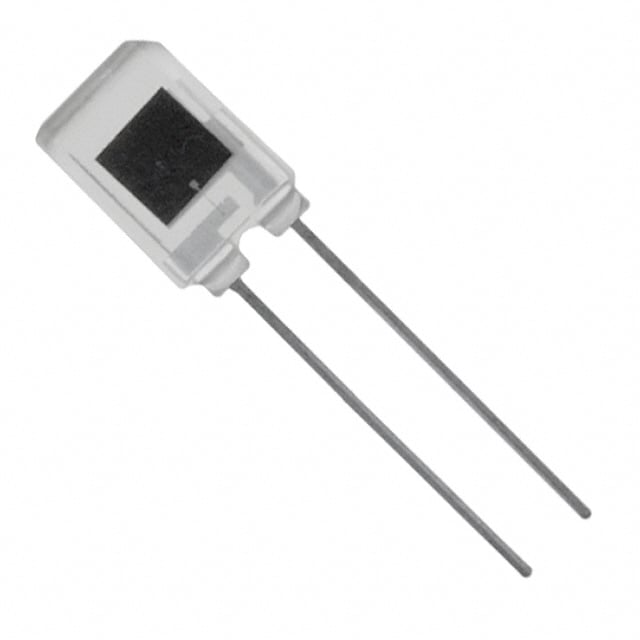

BPW46
Or copy the link below:
- Mfr.Part #
- BPW46
- Manufacturer
- Vishay
- Package / Case
- Radial, Side View
- Datasheet
- Download
- Description
- PHOTODIODE 350 TO 1120 NM
- Stock
- 38,246
- In Stock ：
- 38,246
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Photodiodes
- Published :
- 2011
- REACH SVHC :
- Unknown
- Height :
- 6.4mm
- Diode Type :
- Pin
- Response Time-Max :
- 1e-7s
- Max Reverse Voltage (DC) :
- 60V
- Active Area :
- 7.5mm2
- Radiation Hardening :
- No
- Package / Case :
- Radial, Side View
- Packaging :
- Bulk
- Fall Time (Typ) :
- 100 ns
- Dark Current :
- 2nA
- Capacitance :
- 70pF
- Reverse Voltage (DC) :
- 60V
- Lens Style :
- Clear
- Operating Temperature :
- -40°C~100°C
- Lead Free :
- Lead Free
- Length :
- 5mm
- Mounting Type :
- Through Hole
- Viewing Angle :
- 130°
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 19 Weeks
- Rise Time :
- 100ns
- Reverse Breakdown Voltage :
- 60V
- Max Power Dissipation :
- 215mW
- Power Dissipation :
- 215mW
- Number of Pins :
- 2
- Width :
- 3mm
- Spectral Range :
- 430nm ~ 1100nm
- Mount :
- Through Hole
- Wavelength :
- 900nm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- BPW46
BPW46 Documents
Through Hole -40°C~100°C Bulk Wavelength: 900nm Radial, Side View 7.5mm2 2nA
BPW46 Overview
In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into Radial, Side View packages in order to protect them from damage. Continuously reverse-bias the photodiodes shouldn't exceed 60V. It has 2 pins for the photodiodes. A circuit containing photodiodes might release 215mW heat. Anode voltage for the reverse anode of the photodiodes should be 60V. A circuit should experience a maximum heat release of 215mW when photodiodes are used. With reverse voltage of 60V, the photodiodes can work properly. Without light, a photodiode has 2nA current.
BPW46 Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 430nm ~ 1100nm
Viewing Angle: 130°
BPW46 Applications
There are a lot of Vishay Semiconductor Opto Division
BPW46 Photodiodes applications.
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
