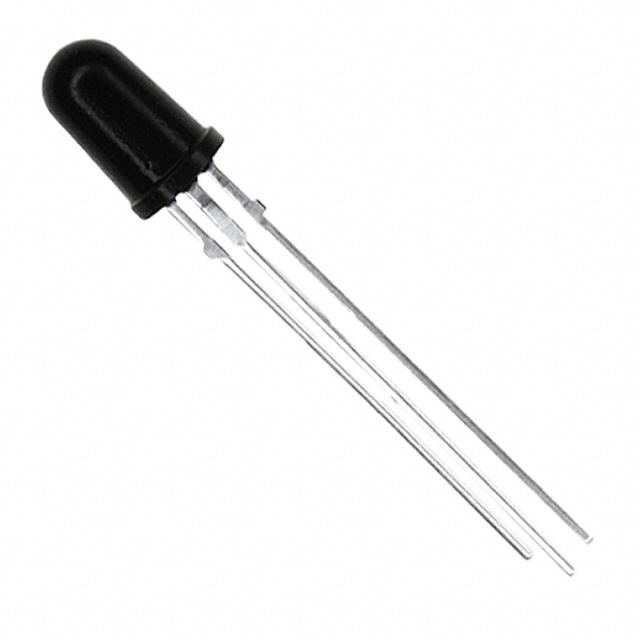

BPV11F

Manufacturer :

Vishay

Product Category :

Optical Sensors - Phototransistors

REACH SVHC :

Unknown

Wavelength :

930nm

Package / Case :

Radial, 5mm Dia (T 1 3/4)

Number of Pins :

3

Current - Collector (Ic) (Max) :

10mA

Collector Emitter Voltage (VCEO) :

70V

Power Dissipation :

150mW

Number of Elements :

1

Lens Style :

Domed

Max Breakdown Voltage :

70V

Number of Channels :

1

Collector Emitter Saturation Voltage :

130mV

Mount :

Through Hole

Fall Time (Typ) :

5 μs

Radiation Hardening :

No

Power - Max :

150mW

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Top View

Height :

8.6mm

Mounting Type :

Through Hole

Min Operating Temperature :

-40°C

Max Collector Current :

50mA

Current - Dark (Id) (Max) :

50nA

Power Consumption :

150mW

Rise Time :

6μs

Voltage - Collector Emitter Breakdown (Max) :

70V

Current Rating :

50mA

Max Operating Temperature :

100°C

Factory Lead Time :

14 Weeks

RoHS Status :

ROHS3 Compliant

Polarity :

NPN

Max Power Dissipation :

150mW

Packaging :

Bulk

Lead Free :

Lead Free

Width :

5.75mm

Collector Emitter Breakdown Voltage :

70V

Length :

5.75mm

Dark Current :

50nA

Operating Temperature :

-40°C~100°C TA

Viewing Angle :

30°

Published :

1999
