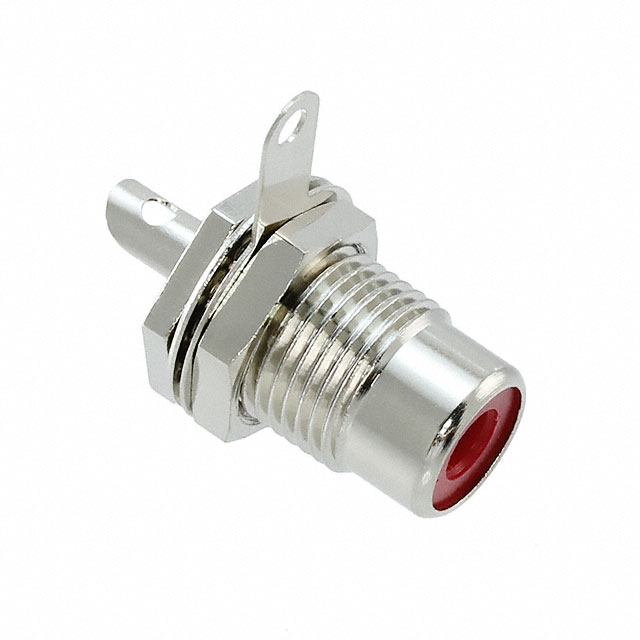

BPJR02X
Or copy the link below:
- Mfr.Part #
- BPJR02X
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCA JACK MONO 3.2MM PNL MT
- Stock
- 757
- In Stock ：
- 757
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Audio Connectors
- Factory Lead Time :
- 12 Weeks
- Orientation :
- Straight
- Feature :
- Grounding Tab, Mounting Hardware
- IEC Conformance :
- No
- DIN Conformance :
- No
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Industry Recognized Mating Diameter :
- 3.20mm ID, 9.00mm OD (RCA)
- Panel Hole Size :
- 0.375 9.52mm
- Actual Diameter :
- 0.134 (3.40mm ID), 0.325 (8.25mm OD)
- Number of Terminations :
- 2
- Depth :
- 13mm
- Packaging :
- Bulk
- MIL Conformance :
- No
- Shielding :
- Unshielded
- Internal Switch(s) :
- Does Not Contain Switch
- Number of Poles :
- 2
- Contact Material - Plating :
- Nickel
- Lead Free :
- Lead Free
- Number of Ports :
- 1
- Published :
- 2005
- Signal Lines :
- Mono
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Plating :
- Nickel, Silver
- Gender :
- FEMALE
- Mount :
- Panel
- Option :
- GENERAL PURPOSE
- Body Material :
- Brass
- Termination :
- Solder Eyelet(s)
- Thread Size :
- 3/8-32
- Length :
- 21.6mm
- Connector Type :
- Phono (RCA) Jack
- Mounting Type :
- Panel Mount
- Body Color :
- Silver
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Insulation Color :
- Red
- Datasheets
- BPJR02X
