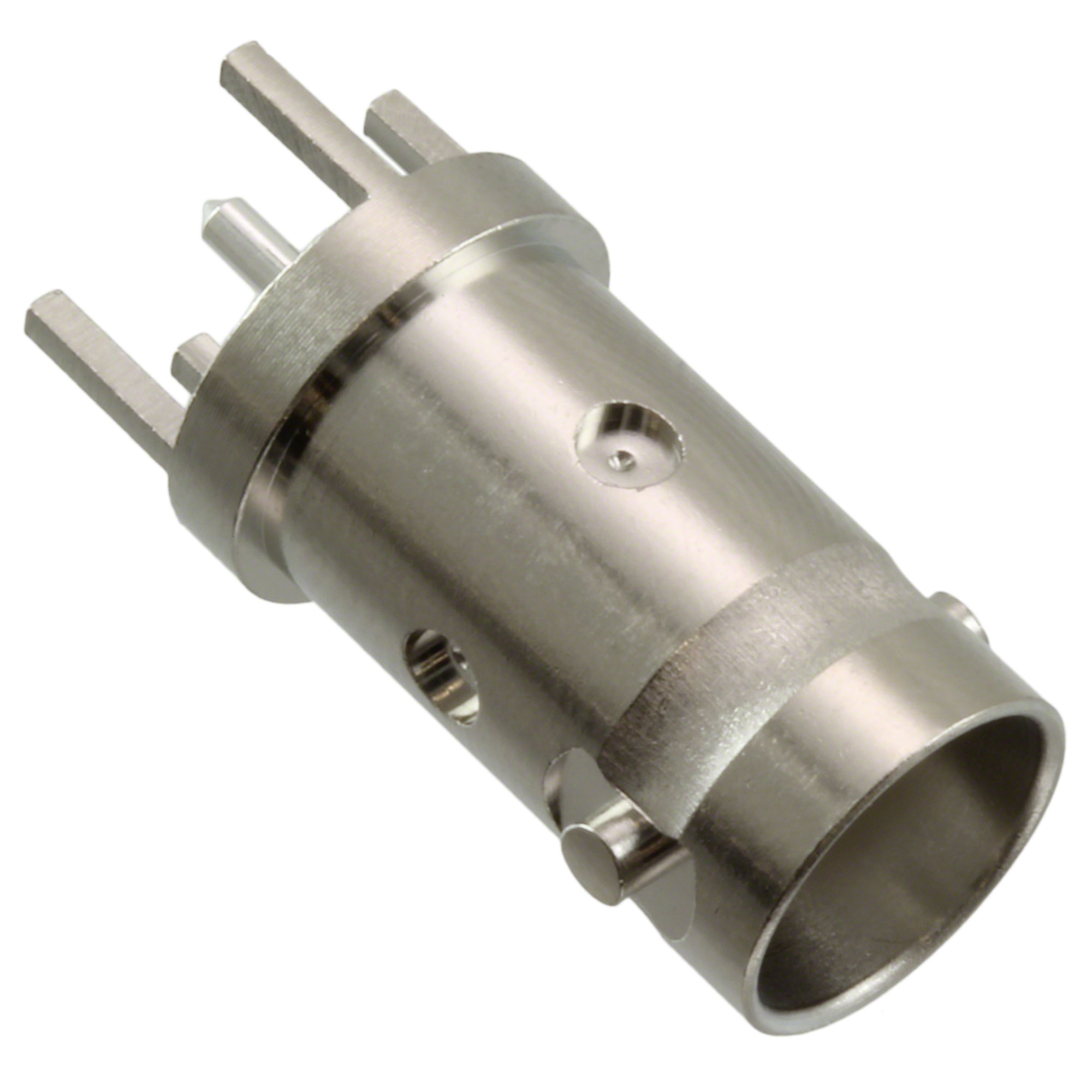

BNC-R-PC(40)
Or copy the link below:
- Mfr.Part #
- BNC-R-PC(40)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC RCPT STR 50 OHM PCB
- Stock
- 239
- In Stock ：
- 239
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Coaxial Connector (RF) Assemblies
- Radiation Hardening :
- No
- Length :
- 23.1mm
- Option :
- GENERAL PURPOSE
- Contact Material :
- Copper
- Packaging :
- Bulk
- Frequency (Max) :
- 2GHz
- Contact Termination :
- Solder
- Mounting Type :
- Through Hole
- Mating Cycles :
- 5000
- Fastening Type :
- Bayonet Lock
- DIN Conformance :
- No
- Number of Ports :
- 1
- Reliability :
- COMMERCIAL
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Housing Color :
- Silver
- Center Contact Material :
- BERYLLIUM COPPER
- ECCN Code :
- EAR99
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- Body Finish :
- Nickel
- Operating Temperature :
- -55°C~85°C
- Filter Feature :
- No
- VSWR :
- 1.2
- Contact Resistance :
- 3mOhm
- Body/Shell Style :
- PLUG
- Mount :
- Through Hole
- Published :
- 2009
- Operating Frequency-Max :
- 2GHz
- Factory Lead Time :
- 10 Weeks
- Total Number of Contacts :
- 1
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Impedance :
- 50Ohm
- Body Material :
- Brass
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- Contact Style :
- COAX
- Connector Type :
- Jack, Female Socket
- Connector Style :
- BNC
- Depth :
- 11.2mm
- Datasheets
- BNC-R-PC(40)
BNC-R-PC(40) Documents
.jpg)
Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder 1 Port Polytetrafluoroethylene (PTFE) -55°C~85°C
BNC-R-PC(40) Overview
It comes in Jack, Female Socket packaging.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.A variety of tasks can be managed through its 1 ports.Through Hole is used to mount the part.In this case, the device operates at -55°C~85°C Operating Temperature.
BNC-R-PC(40) Features
BNC-R-PC(40) Applications
There are a lot of Hirose Electric Co Ltd
BNC-R-PC(40) Coaxial Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
