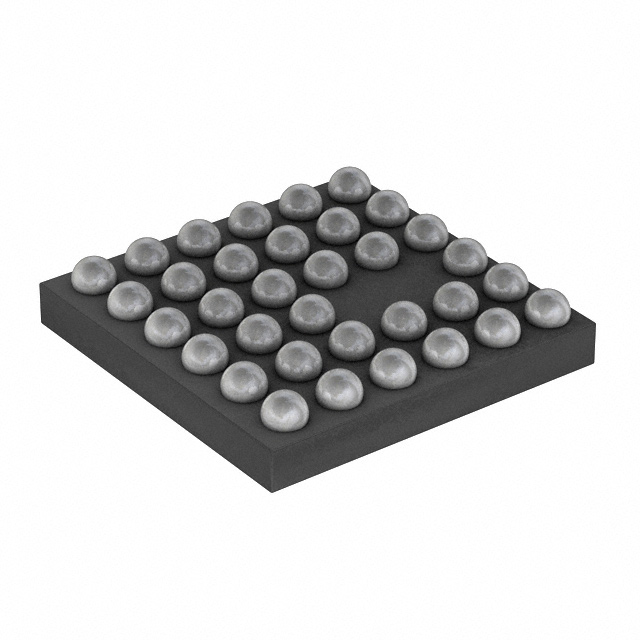

BLUENRG-MSCSP
Or copy the link below:
- Mfr.Part #
- BLUENRG-MSCSP
- Manufacturer
- STMicroelectronics
- Package / Case
- 34-XFBGA, WLCSP
- Datasheet
- Download
- Description
- IC RF TXRX+MCU BLUETOOTH 34XFBGA
- Stock
- 2,045
- In Stock ：
- 2,045
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- RF Transceiver ICs
- Series :
- BlueNRG
- Current - Transmitting :
- 5.8mA~28.8mA
- Voltage - Supply :
- 1.7V~3.6V
- Terminal Form :
- BUTT
- Packaging :
- Cut Tape (CT)
- Width :
- 2.56mm
- REACH SVHC :
- No SVHC
- Number of Pins :
- 34
- Power - Output :
- 8dBm
- RoHS Status :
- ROHS3 Compliant
- Sensitivity (dBm) :
- -88 dBm
- HTS Code :
- 8542.39.00.01
- Factory Lead Time :
- 16 Weeks
- Type :
- TxRx + MCU
- RAM Size :
- 12kB
- Mount :
- Surface Mount
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Supply Voltage :
- 3V
- Memory Size :
- 64kB Flash 12kB RAM
- Modulation :
- GFSK
- Terminal Position :
- BOTTOM
- Height Seated (Max) :
- 0.5mm
- Number of Terminations :
- 34
- Frequency :
- 2.4GHz
- Number of Functions :
- 1
- Serial Interfaces :
- SPI
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Data Rate (Max) :
- 1Mbps
- Max Supply Current :
- 28.8mA
- Package / Case :
- 34-XFBGA, WLCSP
- Operating Temperature :
- -40°C~85°C
- Protocol :
- Bluetooth v4.1
- Length :
- 2.66mm
- RF Family/Standard :
- Bluetooth
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- ECCN Code :
- 5A992.C
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Terminal Pitch :
- 0.4mm
- Current - Receiving :
- 7.3mA~14.5mA
- Number of I/O :
- 15
- Datasheets
- BLUENRG-MSCSP
TxRx + MCU 2.4GHz 1.7V~3.6V SPI 1Mbps 7.3mA~14.5mA - Receiving 5.8mA~28.8mA - Transmitting GFSK 64kB Flash 12kB RAM 34-XFBGA, WLCSP
BLUENRG-MSCSP Overview
There is a 34-XFBGA, WLCSP package on the board that RF transceiver IC is used to save space. With transceiver RF's high efficiency and reliable performance, it emerges as a TxRx + MCU.A high level of reliability is provided by using an advanced transceiver RF' packaging Cut Tape (CT).34 pins are provided on the transceiver RF circuit board.The mount is provided by Surface Mount.As the name implies, this RF transceiver is a kind of the famous BlueNRG series product line.In the 2.4GHz frequency range, RF transceiver operates .
BLUENRG-MSCSP Features
34-XFBGA, WLCSP package
TxRx + MCU
Cut Tape (CT) is used
34 pins
BlueNRG series
BLUENRG-MSCSP Applications
There are a lot of STMicroelectronics
BLUENRG-MSCSP RF Transceiver ICs applications.
- Security Systems
- M2M Communication
- Remote Device Management
- Low-power IoT applications
- LoT applications
- Power Amplifier (PA)
- Low Noise Amplifier (LNA)
- Transmit
- Receive
- Switch
