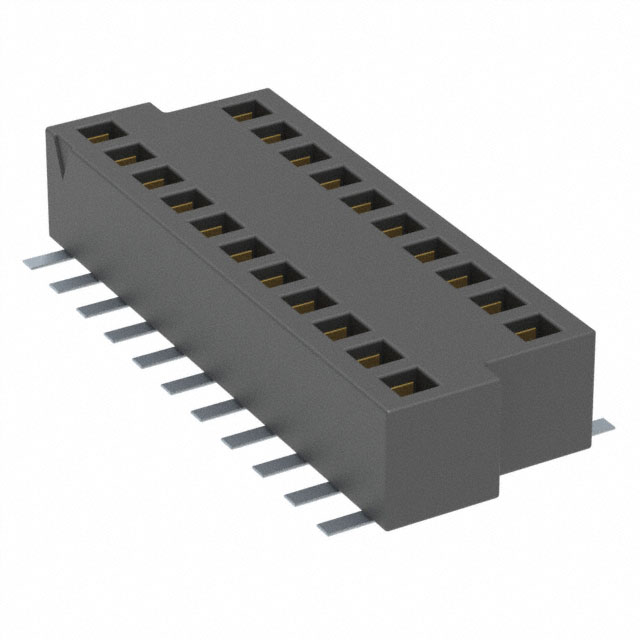

    Images are for reference only.

    Delivery：

    Payment：

    BKS-121-01-L-V-TR

    Share

    Or copy the link below:

    Mfr.Part #
    BKS-121-01-L-V-TR
    Manufacturer
    Samtec, Inc.
    Package / Case
    Datasheet
    Download
    Description
    CONN SOCKET 21POS 0.039 GOLD SMD
    Stock
    6,746
    In Stock ：
    6,746

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Samtec, Inc.
    Product Category :
    Headers, Receptacles, Female Sockets
    Termination :
    Solder
    Terminal Pitch :
    0.9906mm
    Insulation Color :
    Black
    Mounting Type :
    Surface Mount
    Contact Finish - Post :
    Tin
    Row Spacing - Mating :
    0.100 (2.54mm)
    Additional Feature :
    TAPE and REEL PACKAGING
    Style :
    Board to Board
    Number of Conductors :
    ONE
    Insulation Material :
    Liquid Crystal Polymer (LCP)
    Contact Finish - Mating :
    Gold
    HTS Code :
    8536.69.40.40
    Body Length or Diameter :
    0.445 inch
    Packaging :
    Tape and Reel (TR)
    Reliability :
    COMMERCIAL
    Contact Finish Thickness - Mating :
    10.0μin 0.25μm
    Contact Material :
    Phosphor Bronze
    PCB Contact Row Spacing :
    4.699 mm
    Durability :
    100 Cycles
    Number Of PCB Rows :
    2
    Total Number of Contacts :
    21
    Polarization Key :
    POLARIZED HOUSING
    Contact Resistance :
    15mOhm
    Body Depth :
    0.084 inch
    Insulation Height :
    0.084 2.14mm
    ECCN Code :
    EAR99
    Contact Shape :
    Square
    Material Flammability Rating :
    UL94 V-0
    Contact Type :
    Female Socket
    JESD-609 Code :
    e3
    Gender :
    FEMALE
    RoHS Status :
    ROHS3 Compliant
    Number of Positions :
    21
    Pitch - Mating :
    0.039 1.00mm
    Reference Standard :
    UL
    Number of Positions Loaded :
    All
    Plating Thickness :
    10μin
    Current Rating (Amps) :
    2.8A per Contact
    Connector Type :
    Socket
    PCB Contact Pattern :
    STAGGERED
    Moisture Sensitivity Level (MSL) :
    1 (Unlimited)
    Mating Contact Pitch :
    0.039 inch
    Insertion Force-Max :
    .417 N
    Operating Temperature :
    -55°C~125°C
    Fastening Type :
    Push-Pull
    Number of Rows :
    2
    Pbfree Code :
    yes
    Series :
    BKS
    Factory Lead Time :
    6 Weeks
    Stack Height (Mating) :
    4.14mm 4.5mm 5mm 6mm 7mm
    Datasheets
    BKS-121-01-L-V-TR
    Introducing Headers, Receptacles, Female Sockets Samtec, Inc. BKS-121-01-L-V-TR from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Surface Mount, Operating Temperature：-55°C~125°C, BKS-121-01-L-V-TR pinout, BKS-121-01-L-V-TR datasheet PDF, BKS-121-01-L-V-TR amp .Beyond Headers, Receptacles, Female Sockets Samtec, Inc. BKS-121-01-L-V-TR ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

    Samtec, Inc. BKS-121-01-L-V-TR


    2 Rows Socket Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 21 Positions Female Socket

    BKS-121-01-L-V-TR Overview


    The product comes in a package of Socket.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the BKS Series.Among other features are TAPE & REEL PACKAGING, to name only a few.It operates at an operating temperature of -55°C~125°C.

    BKS-121-01-L-V-TR Features


    BKS series


    BKS-121-01-L-V-TR Applications


    There are a lot of Samtec Inc.
    BKS-121-01-L-V-TR Rectangular Connectors applications.


    • Embedded systems
    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
