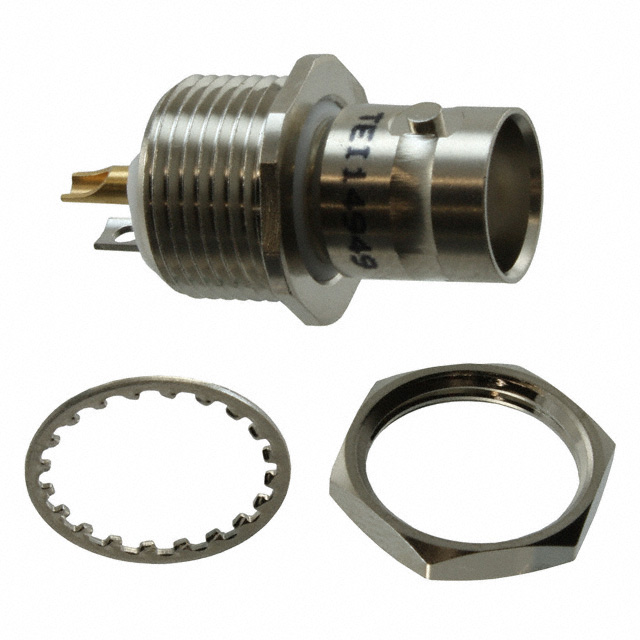

BJ27
Or copy the link below:
- Mfr.Part #
- BJ27
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN BNC JACK STR 50 OHM SOLDER
- Stock
- 9,412
- In Stock ：
- 9,412
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- Coaxial Connector (RF) Assemblies
- Series :
- 20
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- IEC Conformance :
- No
- Contact Material :
- Copper
- Filter Feature :
- No
- Voltage - Rated AC :
- 400V
- Body Material :
- Brass
- Contact Termination :
- Solder Cup
- Mount :
- Bulkhead, Panel, Rear Side Nut
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Silver
- REACH SVHC :
- Unknown
- Includes :
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Additional Feature :
- EMI/RFI SHIELDED
- Radiation Hardening :
- No
- Voltage - Rated :
- 500V
- Fastening Type :
- Bayonet Lock
- Number of Ports :
- 1
- Body Finish :
- Nickel
- Operating Temperature :
- -65°C~165°C
- Packaging :
- Bulk
- Connector Style :
- BNC
- MIL Conformance :
- No
- Impedance :
- 50Ohm
- Mounting Feature :
- Bulkhead - Rear Side Nut
- Feature :
- Extended Insulation
- Shield Termination :
- Solder
- Frequency :
- 4GHz
- Option :
- GENERAL PURPOSE
- Center Contact Plating :
- Gold
- Mounting Type :
- Panel Mount
- Connector Type :
- Jack, Female Socket
- DIN Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 8 Weeks
- Gender :
- FEMALE
- Orientation :
- Straight
- VSWR :
- 1.3
- Datasheets
- BJ27
BJ27 Documents
Jack, Female Socket Bayonet Lock 50Ohm Bulk BNC Solder Cup 1 Port -65°C~165°C
BJ27 Overview
A Jack, Female Socket package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 20 Series.Furthermore, there are other features such as EMI/RFI SHIELDED, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Extended Insulation makes it more powerful.By Bulkhead, Panel, Rear Side Nut, the part is mounted.Operating temperature is set to -65°C~165°C.An effective performance can be achieved at a frequency of 4GHz.
BJ27 Features
20 series
BJ27 Applications
There are a lot of Cinch Connectivity Solutions Trompeter
BJ27 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
