BD6758MWV-E2

Manufacturer :

ROHM Semiconductor

Product Category :

Motor Drivers, Controllers

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Configuration :

Half Bridge (10)

Function :

Driver - Fully Integrated, Control and Power Stage

Terminal Pitch :

0.4mm

JESD-30 Code :

S-XQCC-N36

Packaging :

Cut Tape (CT)

Number of Terminations :

36

Supply Current-Max (Isup) :

2.5mA

Height Seated (Max) :

1mm

Supply Voltage-Min (Vsup) :

2.5V

Current - Output :

500mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Supply Voltage :

3V

ECCN Code :

EAR99

Motor Type - AC, DC :

Brushed DC

Voltage - Supply :

2.5V~5.5V

Qualification Status :

Not Qualified

Mounting Type :

Surface Mount

Terminal Form :

NO LEAD

Voltage - Load :

2.5V~5.5V

Supply Voltage-Max (Vsup) :

5.5V

Power Supplies :

35V

Analog IC - Other Type :

STEPPER MOTOR CONTROLLER

Terminal Position :

QUAD

Published :

2017

Applications :

Camera

HTS Code :

8542.39.00.01

Surface Mount :

yes

RoHS Status :

ROHS3 Compliant

Length :

5mm

Operating Temperature :

-25°C~150°C TJ

Width :

5mm

Factory Lead Time :

8 Weeks

Interface :

Parallel

Pbfree Code :

yes

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

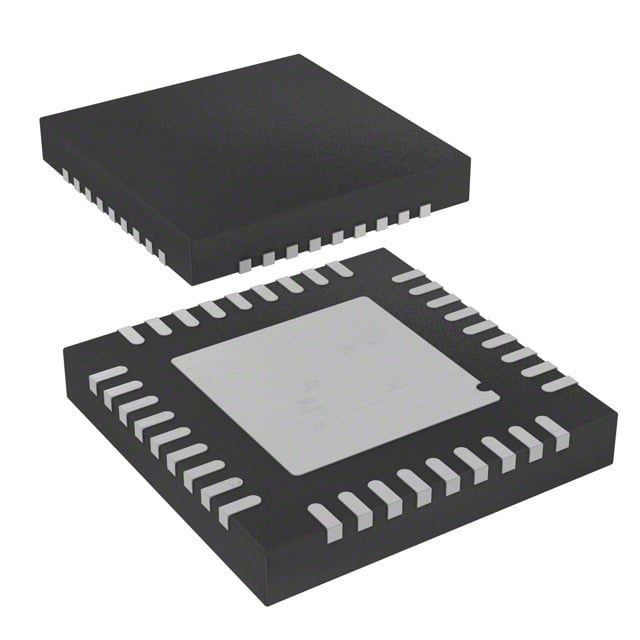

Package / Case :

36-VFQFN Exposed Pad
