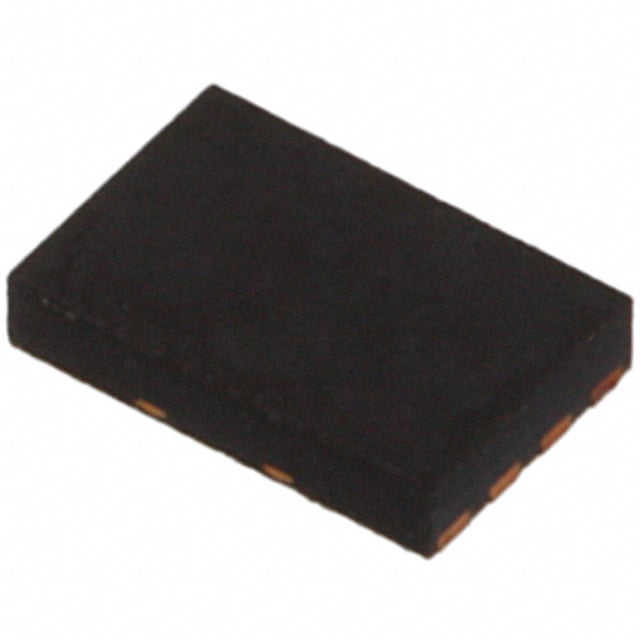

BD5638NUX-TR

Manufacturer :

ROHM Semiconductor

Product Category :

Audio Amplifiers

Number of Channels :

1

Voltage - Supply :

2.5V~5.5V

Max Power Dissipation :

520mW

Terminal Position :

Dual

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage Gain :

18dB

Published :

2010

Supply Voltage-Max (Vsup) :

5.5V

Width :

2mm

Output Type :

1-Channel (Mono)

Length :

3mm

Feature :

Depop, Differential Inputs, PWM, Short-Circuit and Thermal Protection

Height Seated (Max) :

0.6mm

Output Power :

850mW

Number of Functions :

1

Packaging :

Tape and Reel (TR)

Factory Lead Time :

9 Weeks

Power Supplies :

3.6V

Base Part Number :

BD563*

Package / Case :

8-UFDFN Exposed Pad

Radiation Hardening :

No

Number of Pins :

8

Type :

Class D

Max Output Power x Channels @ Load :

2.5W x 1 @ 4 Ω

Max Output Power :

2.5W

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Supply Current-Max :

5.4mA

Terminal Pitch :

0.5mm

Operating Temperature :

-40°C~85°C TA

Supply Voltage-Min (Vsup) :

2.5V

Gain :

18 dB

Number of Terminations :

8

Mount :

Surface Mount
