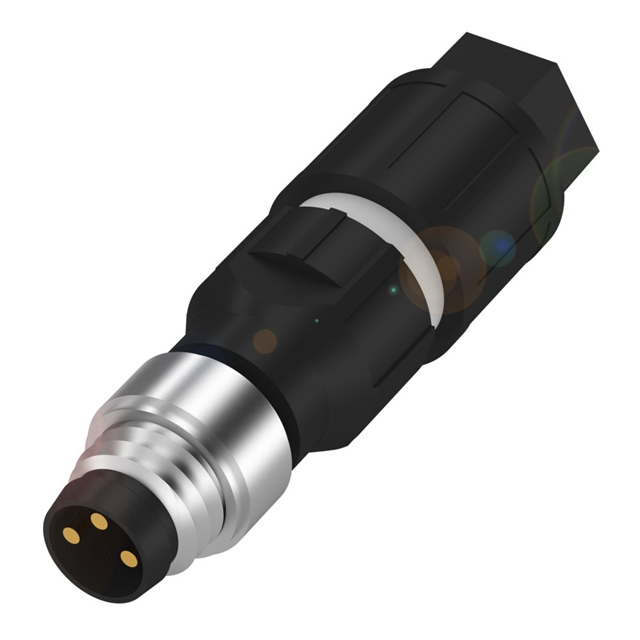

BCC0HLW

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Shielding :

Unshielded

Coding :

A

Mounting Type :

Free Hanging (In-Line)

Contact Finish - Mating :

-

Shell Finish :

-

Shell Size, MIL :

-

Number of Contacts :

3

Operating Temperature :

-25°C ~ 80°C

Mounting Feature :

-

Primary Material :

Metal

Package :

Bag

Voltage Rating :

60VAC/DC

Termination :

IDC

Backshell Material, Plating :

Polyamide (PA), Nylon

Current Rating (Amps) :

4A

Fastening Type :

Threaded

Material Flammability Rating :

-

Product Status :

Active

Shell Material :

Zinc Die Cast

Orientation :

A

Number of Positions :

3

Model :

Male (plug)

Contact Material :

Bronze

Cable Opening :

0.098" ~ 0.205" (2.50mm ~ 5.20mm)

Ingress Protection :

IP67 - Dust Tight, Waterproof

Insert Material :

Polyamide (PA), Nylon

Contact Finish Thickness - Mating :

-

Features :

Backshell

Connector Type :

Receptacle, Male Pins

Series :

-

Termination Method :

Screw

Shell Size - Insert :

M8-3

Body Orientation :

Straight

IP Rating :

IP67

Color :

Black, Silver

Applications :

-
