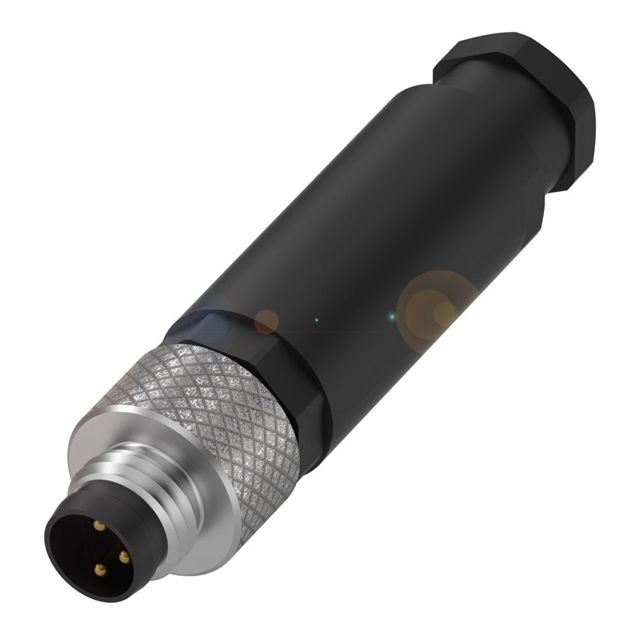

BCC0E7N

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Primary Material :

Metal

Termination :

Screw

Color :

Black, Silver

Mounting Type :

Free Hanging (In-Line)

Features :

Backshell

Current Rating (Amps) :

4A

Package :

Bag

Connector Type :

Receptacle, Male Pins

Voltage Rating :

60VAC/DC

Shell Size - Insert :

M8-3

Ingress Protection :

IP67 - Dust Tight, Waterproof

Backshell Material, Plating :

Polybutylene Terephthalate (PBT)

Mounting Feature :

-

IP Rating :

IP67

Number of Positions :

3

Shell Material :

Brass

Applications :

-

Shell Size, MIL :

-

Coding :

A

Insert Material :

Polyamide (PA), Nylon

Number of Contacts :

3

Fastening Type :

Threaded

Material Flammability Rating :

-

Shell Finish :

-

Orientation :

A

Operating Temperature :

-25°C ~ 85°C

Series :

-

Contact Material :

Brass

Cable Opening :

0.087" ~ 0.138" (2.20mm ~ 3.50mm)

Contact Finish - Mating :

-

Body Orientation :

Straight

Product Status :

Active

Model :

Male (plug)

Termination Method :

Screw

Shielding :

Unshielded

Contact Finish Thickness - Mating :

-
