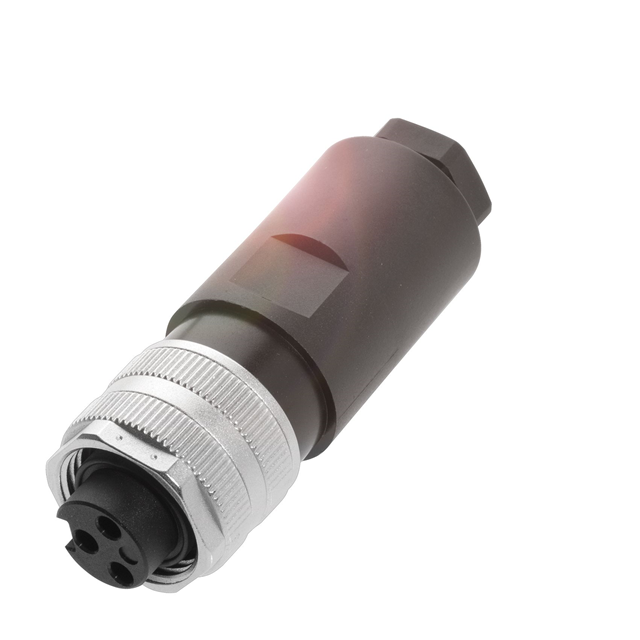

BCC0ATA

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Ingress Protection :

IP67 - Dust Tight, Waterproof

Material Flammability Rating :

-

Product Status :

Active

Model :

Female (bus)

Number of Positions :

3

Operating Temperature :

-25°C ~ 85°C

Shell Size, MIL :

-

Termination :

Screw

Series :

-

Package :

Bag

Shell Size - Insert :

7/8"-3

Cable Opening :

0.394" ~ 0.472" (10.00mm ~ 12.00mm)

Mounting Feature :

-

Shielding :

Unshielded

Orientation :

Keyed

Contact Finish Thickness - Mating :

-

Voltage Rating :

600VAC/DC

Current Rating (Amps) :

9A

Applications :

-

Mounting Type :

Free Hanging (In-Line)

Features :

Backshell, Coupling Nut

Contact Finish - Mating :

-

Contact Material :

Brass

Primary Material :

Metal

Fastening Type :

Threaded

Backshell Material, Plating :

Polybutylene Terephthalate (PBT)

Shell Material :

Zinc Die Cast

Shell Finish :

-

Color :

Black, Silver

Connector Type :

Plug, Female Sockets

Insert Material :

Polyamide (PA), Nylon; Polyurethane (PUR)
