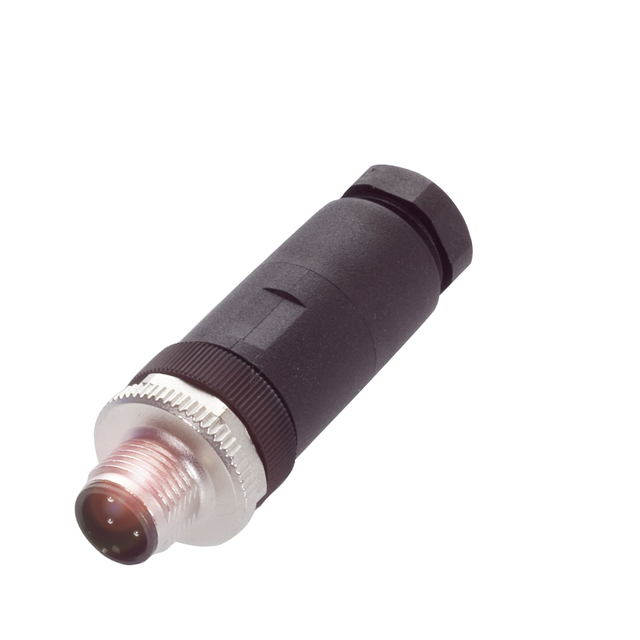

BCC09JW

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Shielding :

Unshielded

Shell Finish :

-

Cable Opening :

0.083" ~ 0.118" (2.10mm ~ 3.00mm)

Connector Type :

Receptacle, Male Pins

Package :

Bag

Shell Size - Insert :

M12-5

Fastening Type :

Threaded

Backshell Material, Plating :

Polyamide (PA), Nylon

Series :

-

Voltage Rating :

125VAC/DC

Primary Material :

Metal

Material Flammability Rating :

-

Insert Material :

Polyamide (PA), Nylon

RoHS :

Compliant

Features :

Backshell

Shell Size, MIL :

-

Number of Contacts :

5

Number of Positions :

5

Applications :

-

Color :

Black, Silver

Termination Method :

Screw

Product Status :

Active

Current Rating (Amps) :

4A

Orientation :

A

Model :

Male (plug)

Coding :

A

Termination :

Screw

Mounting Type :

Free Hanging (In-Line)

Ingress Protection :

IP67 - Dust Tight, Waterproof

IP Rating :

IP67

Operating Temperature :

-40°C ~ 85°C

Contact Finish Thickness - Mating :

-

Body Orientation :

Straight

Contact Finish - Mating :

-

Mounting Feature :

-

Shell Material :

Zinc Die Cast

Contact Material :

Brass
