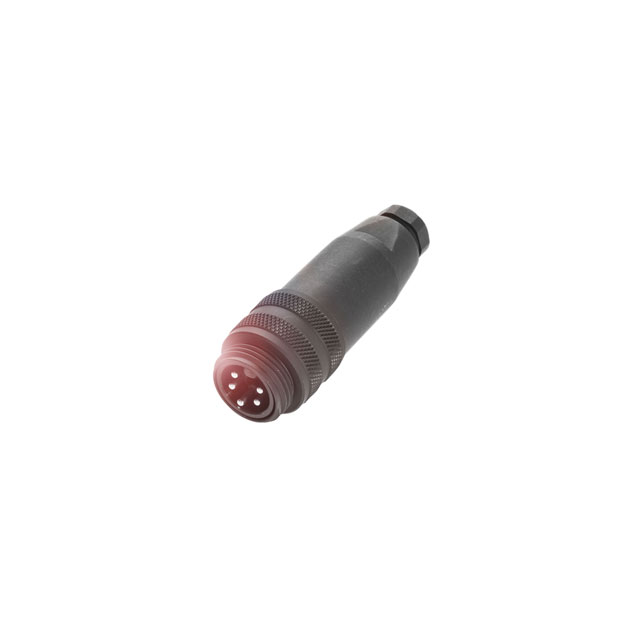

BCC070K

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Number of Positions :

5

Color :

Black

Mounting Feature :

-

Current Rating (Amps) :

9A

Series :

-

Contact Finish Thickness - Mating :

-

Termination :

Screw

Insert Material :

Polyamide (PA), Nylon; Polyurethane (PUR)

Primary Material :

Metal

Shell Size, MIL :

-

Model :

Male (plug)

Shell Finish :

-

Mounting Type :

Free Hanging (In-Line)

Shielding :

Unshielded

Material Flammability Rating :

-

Connector Type :

Receptacle, Male Pins

Fastening Type :

Threaded

Voltage Rating :

600VAC/DC

Ingress Protection :

IP67 - Dust Tight, Waterproof

Product Status :

Active

Termination Method :

Screw

Orientation :

Keyed

RoHS :

Compliant

Features :

Backshell

Backshell Material, Plating :

Polybutylene Terephthalate (PBT)

Shell Size - Insert :

7/8"-5

Number of Contacts :

5

IP Rating :

IP67

Contact Finish - Mating :

-

Package :

Bag

Applications :

-

Shell Material :

Zinc Die Cast

Contact Material :

Brass

Operating Temperature :

-25°C ~ 85°C

Cable Opening :

0.315" ~ 0.394" (8.00mm ~ 10.00mm)

Body Orientation :

Straight
