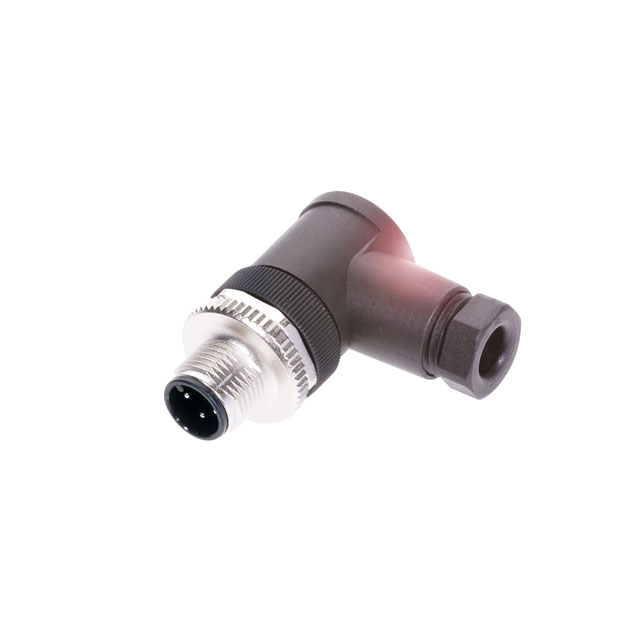

BCC06ZC

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Primary Material :

Metal

Color :

Black, Silver

Current Rating :

4A

Current Rating (Amps) :

4A

Mounting Type :

Free Hanging (In-Line), Right Angle

Contact Finish - Mating :

-

Voltage Rating :

250 V ac/dc

Contact Gender :

Male

Minimum Operating Temperature :

-25°C

Shell Size, MIL :

-

Contact Finish Thickness - Mating :

-

Operating Temperature :

-40°C ~ 85°C

Orientation :

A

Applications :

-

Body Orientation :

RIGHT ANGLE

Material Flammability Rating :

-

Fastening Type :

Threaded

Number of Contacts :

4

Package :

Bag

Product Status :

Active

IP Rating :

IP67

Ingress Protection :

IP67 - Dust Tight, Waterproof

Contact Material :

Brass

Coding :

A

Number of Positions :

4

Backshell Material, Plating :

Polyamide (PA), Nylon

Shell Material :

Zinc Die Cast

Maximum Operating Temperature :

+85°C

Features :

Backshell

Shell Finish :

-

Shell Size - Insert :

M12-4

Shielding :

Unshielded

Series :

-

Model :

Male (plug)

Termination :

Screw

Mounting Feature :

-

Cable Opening :

0.157 ~ 0.236 (4.00mm ~ 6.00mm)

Connector Type :

Receptacle, Male Pins

Insert Material :

Polyamide (PA), Nylon
